Rear Brake System
All 2017 SSR SR250S schematics

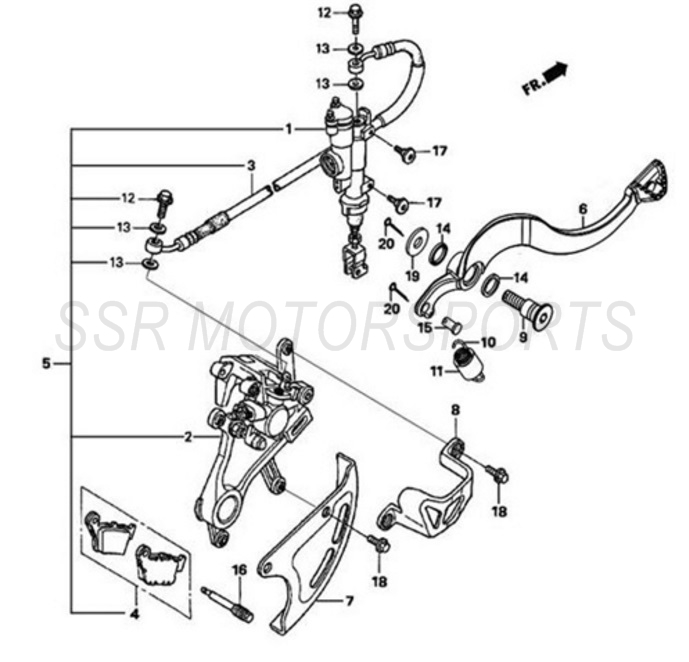

2017 SSR SR250S - Rear Brake System Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00063-04-00 | REAR BRAKE MASTER CYLINDER ASSY+ ADD | $68.30 | 1 |
| 2 | A00064-04-00 | REAR CALIPER ASSY+ ADD | $92.80 | 1 |
| 3 | A00065-04-00 | REAR BRAKE HOSE+ ADD | $19.30 | 1 |
| 4 | A00066-04-00 | REAR BRAKE PAD SET+ ADD | $59.50 | 1 |
| 5 | A00067-04-00 | REAR BRAKE ASSY+ ADD | $187.30 | 1 |
| 6 | A00068-04-00 | REAR BRAKE PEDAL+ ADD | $63.00 | 1 |
| 7 | A00055-02-01 | REAR BRAKE ROTOR GUARD WHITE+ ADD | $14.00 | 1 |
| 8 | A00075-04-01 | REAR BRAKE CALIPER COVER+ ADD | $8.00 | 1 |
| 9 | A00069-04-00 | REAR BRAKE PEDAL PIVOT BOLT M10X43+ ADD | $2.50 | 1 |
| 10 | A00070-04-00 | REAR BRAKE PEDAL RETURN SPRING+ ADD | $2.60 | 1 |
| 11 | A00071-04-00 | RUBBER SLEEVE 14X18X17+ ADD | $2.00 | 1 |
| 12 | A00072-04-00 | BANJO BOLT+ ADD | $2.50 | 2 |
| 12 | A00597-08-00 | REAR BRAKE LIGHT SWITCH+ ADD | $38.50 | 1 |
| 13 | A00025-04-00 | SEALING WASHER+ ADD | $2.00 | 4 |
| 14 | A00020-26-00 | DUST SEAL 15X20X2.5+ ADD | $3.50 | 2 |
| 15 | A00016-25-00 | REAR BRAKE PIN+ ADD | $2.00 | 1 |
| 16 | A00074-04-00 | BRAKE PAD PIN+ ADD | $2.00 | 1 |
| 17 | A00042-19-03 | BUTTON HEAD ALLEN BOLT M6x15+ ADD | $2.00 | 2 |
| 18 | A00008-19-03 | FLANGE BOLT M6X12+ ADD | $2.00 | 4 |
| 20 | A00006-25-01 | COTTER PIN 2.0X15+ ADD | $2.00 | 2 |
