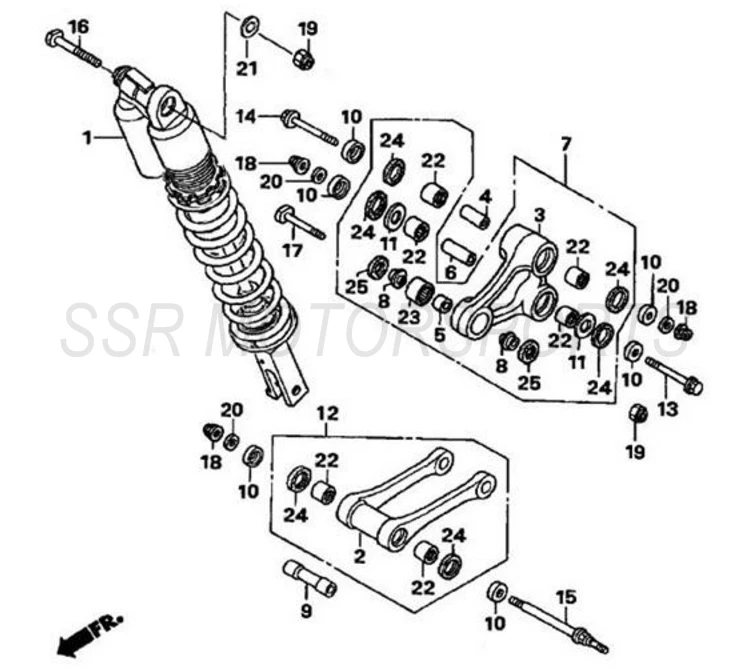

2017 SSR SR250S - Rear Suspension Parts Diagram

Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.

FIND & SELECT YOUR PARTS

PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.

NO.	PART #	DESCRIPTION	MSRP	QTY
1	A00058-16-00	REAR SHOCK ASSY+ ADD	$460.30	1
2	A00059-16-00	REAR SUSPENSION CONNECTING ROD+ ADD	$85.80	1
3	A00060-16-00	SUB-ARM CONNECTING LINK+ ADD	$92.80	1
4	A00061-16-00	SUB-ARM SLEEVE 2 12X20X37+ ADD	$14.00	1
5	A00062-16-00	SUB-ARM SLEEVE 3 14X19X10.5  11+ ADD	$8.80	1
6	A00063-16-00	SUB-ARM SLEEVE 1 12X20X50+ ADD	$15.80	1
7	A00064-16-00	CONNECTING ROD SUB-ASSY+ ADD	$176.80	1
8	A00065-16-00	SUB-ARM FRONT SPACER SLEEVE 25X12X5+ ADD	$3.50	2
9	A00066-16-00	CONNECTING ROD SLEEVE 12X20X77.5+ ADD	$21.00	1
10	A00067-16-00	CONNECTING ROD SPACER SLEEVE 12X25X5+ ADD	$2.60	6
11	A00024-21-01	WASHER 20X31X1.5+ ADD	$2.00	2
12	A00069-16-00	CONNECTING ROD ASSY+ ADD	$106.80	1
13	A00019-19-01	FLANGE BOLT M12X95+ ADD	$6.10	1
14	A00072-19-01	FLANGE BOLT M12X80X1.25+ ADD	$4.40	1
15	A00014-19-04	STUD M12X173X1.25+ ADD	$8.80	1
16	A00081-19-07	SPECIAL BOLT M10X63X1.25+ ADD	$4.40	1
17	A00005-19-07	SPECIAL BOLT M10x45+ ADD	$3.50	1
18	A00003-22-34	FLANGE LOCKNUT M14+ ADD	$2.60	3
19	A00004-22-34	FLANGE LOCKNUT M10+ ADD	$2.50	2
20	A00001-21-01	WASHER M12X24X1.5+ ADD	$2.00	2
21	A00002-21-01	WASHER M10+ ADD	$2.00	1
22	A00109-28-00	NEEDLE BEARING 20X26X15+ ADD	$14.00	6
23	A00110-28-01	NEEDLE BEARING 19x26x13+ ADD	$14.00	1
24	A00068-26-00	DUST SEAL+ ADD	$3.50	6
25	A00069-26-00	DUST SEAL+ ADD	$2.60	2
