Rear Wheel
All 2017 SSR SR250S schematics

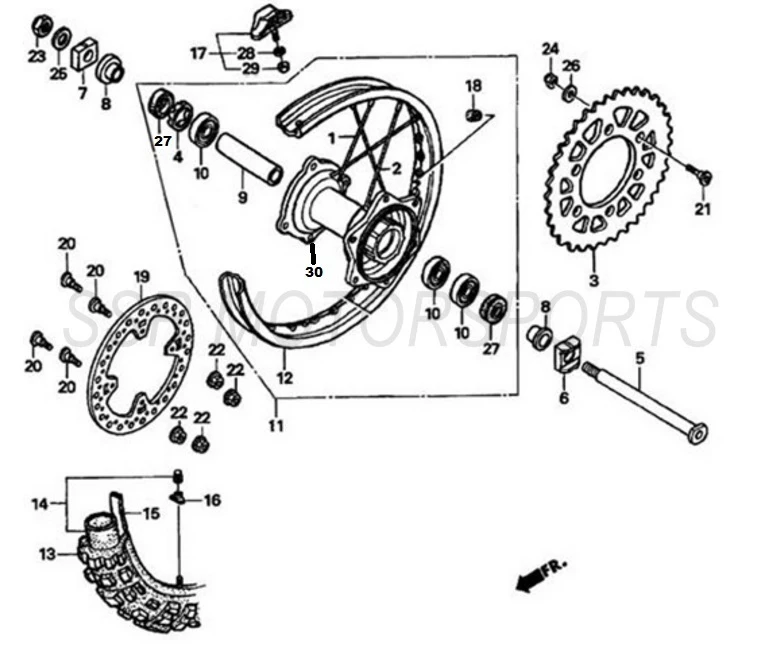

2017 SSR SR250S - Rear Wheel Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00070-18-00 | REAR INNER SPOKE W/ NIPPLE+ ADD | $3.50 | 16 |
| 2 | A00071-18-00 | REAR OUTER SPOKE W/ NIPPLE+ ADD | $3.50 | 16 |
| 3 | A00353-07-00 | REAR SPROCKET 48T-520 BLACK+ ADD | $105.00 | 1 |
| 3 | A00073-18-00 | REAR SPROCKET 50T+ ADD | $176.80 | 1 |
| 4 | A00074-18-00 | RETAINER+ ADD | $4.40 | 1 |
| 5 | A00075-18-00 | REAR WHEEL AXLE M22X1.5X272+ ADD | $45.50 | 1 |
| 6 | A00076-18-00 | LEFT CHAIN ADJUSTER BLOCK+ ADD | $10.50 | 1 |
| 7 | A00077-18-00 | RIGHT CHAIN ADJUSTER BLOCK+ ADD | $10.50 | 1 |
| 8 | A00078-18-00 | REAR WHEEL AXLE SPACER 25X40X23+ ADD | $21.00 | 2 |
| 9 | A00079-18-00 | REAR WHEEL BEARING SPACER 25X31X100.5+ ADD | $35.00 | 1 |
| 10 | A00039-28-00 | BEARING 6905-RS1+ ADD | $12.30 | 3 |
| 11 | A00081-18-01 | REAR WHEEL ASSY 2.15-18 BLACK RIM / SILVER HUB+ ADD | $649.30 | 1 |
| 12 | A00082-18-02 | REAR RIM BLACK 2.15-18 BLACK+ ADD | $260.80 | 1 |
| 13 | A00083-18-00 | REAR TIRE 100/90-18 CST C-7210-17+ ADD | $159.30 | 1 |
| 14 | A00084-18-00 | INNERTUBE 4.60-18+ ADD | $24.50 | 1 |
| 15 | A00033-18-00 | RIM STRIP 18"+ ADD | $8.00 | 1 |
| 16 | A00085-18-00 | VALVE STEM RUBBER HOLDER+ ADD | $6.10 | 1 |
| 17 | A00086-18-00 | RIM LOCK ASSY 2.15+ ADD | $28.00 | 1 |
| 18 | A00087-18-00 | SPOKE NIPPLE+ ADD | $2.00 | 32 |
| 19 | A00644-04-00 | SUPERSEDED TO: A00645-04-00 240X4+ ADD | $59.50 | 1 |
| 20 | A00006-19-01 | FLANGE BOLT M6X20+ ADD | $2.00 | 4 |
| 21 | A00045-19-03 | REAR SPROCKET BOLT M8X31+ ADD | $2.00 | 6 |
| 22 | A00002-22-34 | FLANGE LOCKNUT M6+ ADD | $2.00 | 4 |
| 23 | A00012-22-01 | REAR AXLE NUT M22X1.5+ ADD | $6.10 | 1 |
| 24 | A00001-22-04 | FLANGE LOCKNUT M8+ ADD | $2.00 | 6 |
| 25 | A00097-21-01 | WASHER M22+ ADD | $2.50 | 1 |
| 27 | A00012-26-00 | SEAL 33X43X7+ ADD | $3.50 | 2 |
| 28 | A00004-21-01 | WASHER M8+ ADD | $2.00 | 1 |
| 29 | A00002-22-01 | NUT M8+ ADD | $2.00 | 1 |
| 30 | A00520-18-00 | REAR HUB+ ADD | $376.30 | 1 |
