Right Crankcase Half
All 2017 SSR SR250S schematics

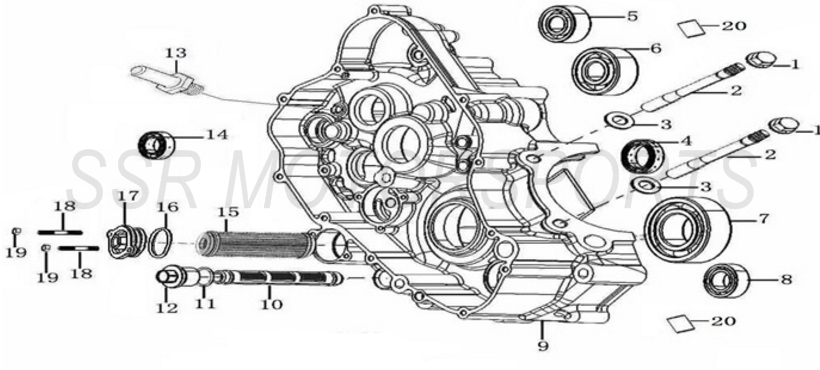

2017 SSR SR250S - Right Crankcase Half Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00002-22-36 | FLANGE CAP NUT M10x1.25+ ADD | $2.00 | 2 |
| 2 | A00116-19-04 | CYLINDER STUD+ ADD | $8.00 | 2 |
| 3 | A00032-21-01 | WASHER 10.5X2X20+ ADD | $2.00 | 2 |
| 4 | A00027-28-00 | BEARING 6805+ ADD | $19.30 | 1 |
| 5 | A00028-28-00 | BEARING 6203/P63+ ADD | $12.30 | 1 |
| 6 | A00029-28-00 | BEARING TM6304/P53+ ADD | $24.50 | 1 |
| 7 | A00030-28-00 | BEARING TM6207RS+ ADD | $59.50 | 1 |
| 8 | A00031-28-00 | BEARING 6004DDUCM NSK+ ADD | $12.30 | 1 |
| 9 | A00372-09-00 | RIGHT CRANKCASE HALF+ ADD | $234.50 | 1 |
| 10 | A00373-09-00 | OIL FILTER STRAINER METAL MESH+ ADD | $14.00 | 1 |
| 11 | A00022-27-00 | O-RING 17.5X1.8+ ADD | $2.00 | 1 |
| 12 | A00375-09-00 | OIL FILTER SCREEN COVER+ ADD | $8.80 | 1 |
| 13 | A00376-09-00 | RETURN SPRING PIN+ ADD | $8.00 | 1 |
| 14 | A00026-28-00 | BEARING 6902+ ADD | $12.30 | 1 |
| 15 | A00377-09-00 | OIL FILTER METAL MESH+ ADD | $42.00 | 1 |
| 16 | A00021-27-00 | O-RING 30X2.6+ ADD | $2.60 | 1 |
| 17 | A00379-09-00 | OIL FILTER CAP+ ADD | $19.30 | 1 |
| 18 | A00013-19-04 | STUD M5X22+ ADD | $2.00 | 2 |
| 19 | A00007-22-01 | NUT M5+ ADD | $2.00 | 2 |
| 20 | A00008-23-00 | DOWEL PIN 13X14+ ADD | $2.00 | 2 |
