Starter Motor
All 2017 SSR SR250S schematics

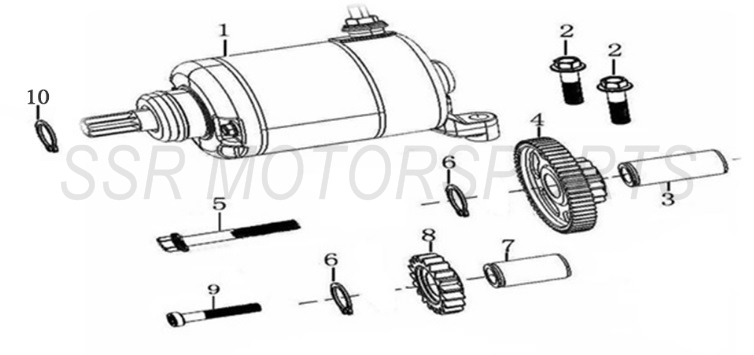

2017 SSR SR250S - Starter Motor Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00431-09-00 | STARTER MOTOR ASSY 9T+ ADD | $154.00 | 1 |
| 2 | A00003-19-01 | FLANGE BOLT M6X25+ ADD | $2.00 | 2 |
| 3 | A00432-09-00 | REDUCTION GEAR SHAFT+ ADD | $12.30 | 1 |
| 4 | A00433-09-00 | STARTER REDUCTION GEAR 14T / 58T+ ADD | $31.50 | 1 |
| 5 | A00425-19-08 | CASE FLANGE BOLT M6X35+ ADD | $2.00 | 1 |
| 6 | A00012-24-07 | CIRCLIP 15+ ADD | $2.00 | 2 |
| 7 | A00435-09-00 | REDUCTION GEAR SHAFT 2+ ADD | $10.50 | 1 |
| 8 | A00436-09-00 | REDUCTION GEAR 2 19T+ ADD | $19.30 | 1 |
| 9 | A00015-19-02 | ALLEN BOLT M6x30+ ADD | $2.00 | 1 |
| 10 | A00085-27-00 | O-RING+ ADD | $2.00 | 1 |
