Stator
All 2017 SSR SR250S schematics

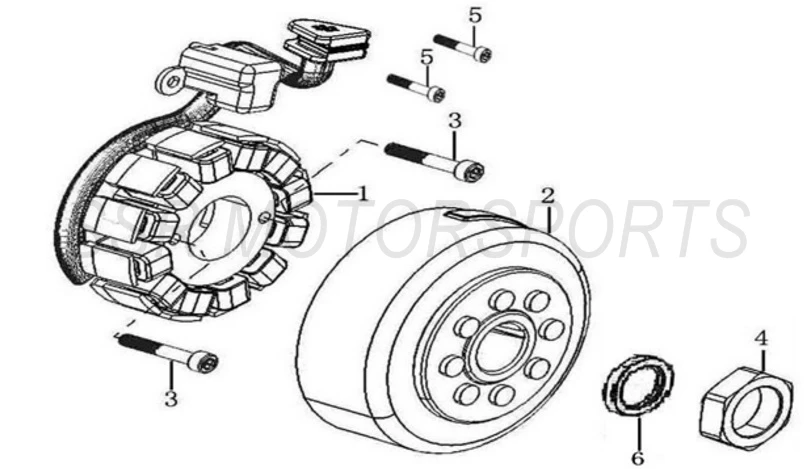

2017 SSR SR250S - Stator Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00429-09-00 | STATOR+ ADD | $106.80 | 1 |
| 2 | A00430-09-00 | FLYWHEEL+ ADD | $92.80 | 1 |
| 3 | A00013-19-02 | ALLEN BOLT M5X30+ ADD | $2.00 | 2 |
| 4 | A00003-22-07 | NUT M14x1.5+ ADD | $2.60 | 1 |
| 5 | A00014-19-02 | ALLEN BOLT M5x10+ ADD | $2.00 | 2 |
| 6 | A00237-21-01 | WASHER 15.2X1.5X25+ ADD | $2.00 | 1 |
Selected Parts (0)
Estimated Total: $0.00
WHERE USED
WHERE USED
Exact part-number matches verified in SSR parts catalogs.
