Swingarm
All 2017 SSR SR250S schematics

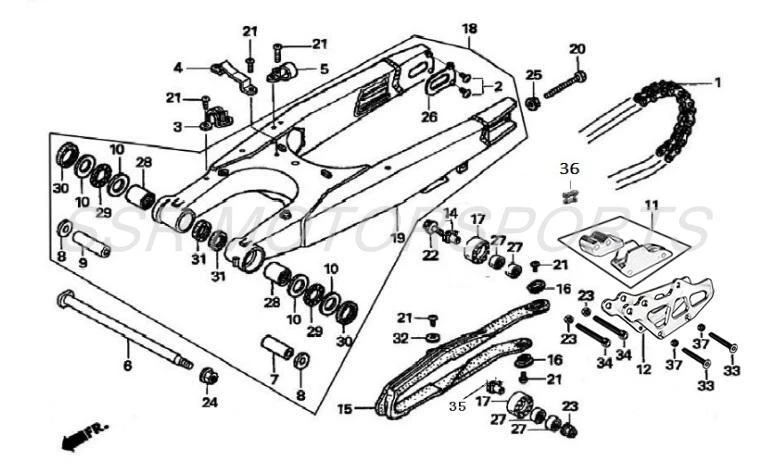

2017 SSR SR250S - Swingarm Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00033-07-00 | DRIVE CHAIN 520X114+ ADD | $210.00 | 1 |
| 2 | A00007-20-12 | CS SCREW M5X12+ ADD | $2.00 | 4 |
| 3 | A00034-07-00 | GUIDE A+ ADD | $2.60 | 1 |
| 4 | A00035-07-00 | GUIDE B+ ADD | $2.00 | 1 |
| 5 | A00036-07-00 | GUIDE C+ ADD | $2.60 | 1 |
| 6 | A00037-07-00 | SWINGARM AXLE M14X247X1.5+ ADD | $40.30 | 1 |
| 7 | A00038-07-00 | BUSHING LEFT 17X22X46+ ADD | $15.80 | 1 |
| 8 | A00039-07-00 | WASHER 17X30X6+ ADD | $2.50 | 2 |
| 9 | A00040-07-00 | BUSHING RIGHT 17X22X54+ ADD | $19.30 | 1 |
| 10 | A00039-21-01 | WASHER AS 22352+ ADD | $2.50 | 4 |
| 12 | A00431-07-00 | LOWER CHAIN GUIDE ASSY INCLUDES HARDWARE+ ADD | $75.30 | 1 |
| 13 | A00044-07-00 | COLLAR 10X24.2+ ADD | $2.00 | 2 |
| 14 | A00045-07-00 | COLLAR T 8.5X16X8.5+ ADD | $2.00 | 1 |
| 15 | A00046-07-00 | CHAIN SLIDER+ ADD | $68.30 | 1 |
| 16 | A00069-07-00 | CHAIN SLIDER WASHER 28.5X21X5.5+ ADD | $2.00 | 2 |
| 17 | A00047-07-00 | CHAIN ROLLER+ ADD | $14.00 | 2 |
| 18 | A00071-07-00 | SWINGARM ASSY+ ADD | $493.50 | 1 |
| 19 | A00049-07-00 | SWINGARM+ ADD | $399.00 | 1 |
| 20 | A00041-19-03 | BOLT M8x50+ ADD | $2.50 | 2 |
| 21 | A00007-20-01 | CS SCREW M5x12+ ADD | $2.00 | 9 |
| 22 | A00014-19-01 | FLANGE BOLT M8X40+ ADD | $2.50 | 1 |
| 23 | A00093-22-03 | FLANGE NUT M6 (SILVER -OR- BLACK)+ ADD | $2.00 | 3 |
| 24 | A00003-22-01 | FLANGE LOCKNUT M14x1.5+ ADD | $2.60 | 1 |
| 25 | A00002-22-01 | NUT M8+ ADD | $2.00 | 2 |
| 26 | A00050-07-00 | CHAIN ADJUSTER PLATE+ ADD | $8.80 | 2 |
| 27 | A00023-28-00 | BEARING 608 LU+ ADD | $24.50 | 3 |
| 28 | A00024-28-00 | NEEDLE BEARING 22X29X30+ ADD | $12.30 | 2 |
| 29 | A00025-28-00 | BEARING AXK 22352+ ADD | $12.30 | 2 |
| 30 | A00009-26-00 | OUTER DUST SEAL 30X37X4+ ADD | $12.30 | 2 |
| 31 | A00010-26-00 | DUST SEAL 22X29X4+ ADD | $4.40 | 2 |
| 32 | A00040-21-01 | WASHER M5.5x18x2+ ADD | $2.00 | 1 |
| 33 | A00401-19-00 | COUNTERSUNK ALLEN BOLT M5X50+ ADD | $2.00 | 2 |
| 34 | A00400-19-00 | ALLEN BOLT M6X55+ ADD | $2.00 | 2 |
| 35 | A00081-07-00 | LOWER CHAIN ROLLER BUSHING+ ADD | $2.60 | 1 |
| 36 | A00344-07-00 | CLIP LINK 520+ ADD | $8.80 | 1 |
| 37 | A00331-22-00 | LOCKNUT M5+ ADD | $2.00 | 2 |
