All 2017 SSR SR250S schematics

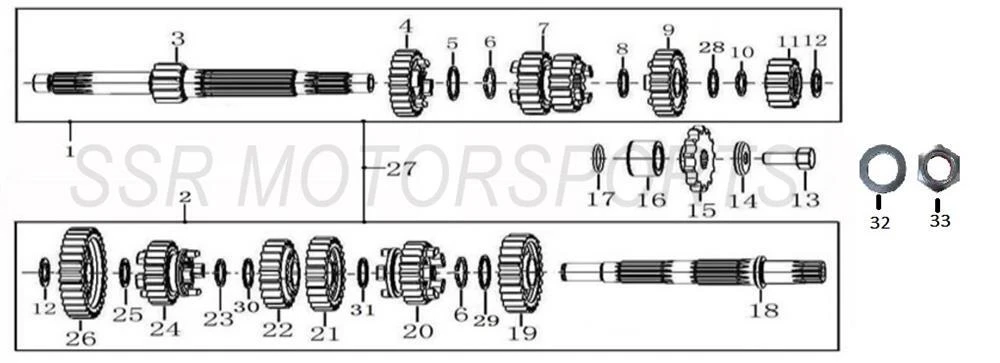

2017 SSR SR250S - Transmission Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00041-17-00 | MAINSHAFT ASSY+ ADD | $224.00 | 1 |
| 2 | A00042-17-00 | CONTERSHAFT ASSY BOLT VERSION+ ADD | $295.80 | 1 |
| 2 | A00433-17-00 | COUNTERSHAFT ASSY NUT VERSION+ ADD | $218.80 | 1 |
| 3 | A00043-17-00 | MAINSHAFT M-1 / 12T+ ADD | $56.00 | 1 |
| 4 | A00044-17-00 | GEAR M-5 / 24T+ ADD | $47.30 | 1 |
| 5 | A00045-17-00 | WASHER 25.1X1.0X30+ ADD | $2.50 | 1 |
| 6 | A00046-17-00 | CIRCLIP 23X1X29+ ADD | $2.00 | 2 |
| 7 | A00047-17-00 | GEAR M-3 & 4 / 18T & 20T+ ADD | $47.30 | 1 |
| 8 | A00048-17-00 | WASHER 20.1X1.0X25+ ADD | $2.50 | 1 |
| 9 | A00049-17-00 | GEAR M-6 / 25T+ ADD | $47.30 | 1 |
| 10 | A00050-17-00 | CIRCLIP+ ADD | $2.00 | 1 |
| 11 | A00051-17-00 | GEAR M-2 / 15T+ ADD | $47.30 | 1 |
| 12 | A00052-17-00 | WASHER 17.1X1.0X26+ ADD | $2.50 | 2 |
| 13 | A00117-19-03 | BOLT M10x1.25+ ADD | $2.00 | 1 |
| 14 | A00053-17-00 | WASHER 10.2X4X30+ ADD | $2.00 | 1 |
| 15 | A00346-07-00 | COUNTERSHAFT SPROCKET 13T+ ADD | $35.00 | 1 |
| 16 | A00055-17-00 | BUSHING+ ADD | $14.00 | 1 |
| 17 | A00028-27-00 | O-RING 21X2+ ADD | $2.60 | 1 |
| 18 | A00057-17-00 | COUNTERSHAFT BOLT VERSION+ ADD | $52.50 | 1 |
| 18 | A00434-17-00 | COUNTERSHAFT NUT VERSION+ ADD | $38.50 | 1 |
| 19 | A00058-17-00 | GEAR C-2 / 27T+ ADD | $47.30 | 1 |
| 20 | A00059-17-00 | GEAR C-6 / 22T+ ADD | $47.30 | 1 |
| 21 | A00060-17-00 | GEAR C-3 / 24T+ ADD | $47.30 | 1 |
| 22 | A00061-17-00 | GEAR C-4 / 22T+ ADD | $47.30 | 1 |
| 23 | A00062-17-00 | CHECK RING+ ADD | $2.50 | 1 |
| 24 | A00063-17-00 | GEAR C-5 / 23T+ ADD | $47.30 | 1 |
| 25 | A00064-17-00 | WASHER 19X1X26+ ADD | $2.50 | 1 |
| 26 | A00065-17-00 | GEAR C-1 / 31T+ ADD | $47.30 | 1 |
| 27 | A00066-17-00 | TRANSMISSION ASSY+ ADD | $437.50 | 1 |
| 28 | A00067-17-00 | WASHER+ ADD | $2.50 | 1 |
| 29 | A00068-17-00 | WASHER+ ADD | $2.50 | 1 |
| 30 | A00069-17-00 | WASHER+ ADD | $2.50 | 1 |
| 31 | A00070-17-00 | WASHER 22.1X1.0X28+ ADD | $2.50 | 1 |
| 32 | A00404-17-00 | LOCK WASHER+ ADD | $2.50 | 1 |
| 33 | A00405-17-00 | COUNTERSHAFT SPROCKET NUT M16x1.0+ ADD | $4.40 | 1 |
