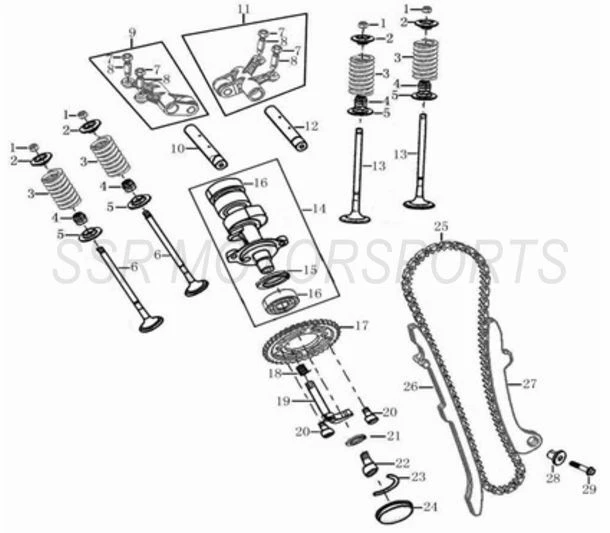

2017 SSR SR250S - Valves Parts Diagram

Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.

FIND & SELECT YOUR PARTS

PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.

NO.	PART #	DESCRIPTION	MSRP	QTY
1	A00277-09-00	COLLET+ ADD	$3.50	8
2	A00278-09-00	UPPER VALVE SPRING SEAT+ ADD	$6.10	4
3	A00279-09-00	VALVE SPRING+ ADD	$8.80	4
4	A00280-09-00	VALVE STEM SEAL+ ADD	$15.80	4
5	A00281-09-00	LOWER VALVE SPRING RETAINER+ ADD	$6.10	4
6	A00282-09-00	INTAKE VALVE+ ADD	$38.50	2
7	A00283-09-00	VALVE ADJUSTMENT NUT+ ADD	$4.40	4
8	A00284-09-00	VALVE CLEARANCE ADJUSTMENT SCREW+ ADD	$4.40	4
9	A00285-09-00	INTAKE ROCKER ARM ASSY+ ADD	$106.80	1
10	A00286-09-00	INTAKE ROCKER SHAFT+ ADD	$8.80	1
11	A00287-09-00	EXHAUST ROCKER ARM ASSY+ ADD	$106.80	1
12	A00288-09-00	EXHAUST ROCKER SHAFT+ ADD	$8.80	1
13	A00289-09-00	EXHAUST VALVE+ ADD	$40.30	2
14	A00290-09-00	CAMSHAFT ASSY+ ADD	$224.00	1
15	A00096-21-01	WASHER+ ADD	$2.60	1
16	A00037-28-00	BEARING 6201C3+ ADD	$26.30	2
17	A00292-09-00	CAM TIMING SPROCKET 38T+ ADD	$38.50	1
18	A00293-09-00	DECOMPRESSION SPRING+ ADD	$2.50	1
19	A00294-09-00	DECOMPRESSION ARM+ ADD	$62.00	1
20	A00010-19-02	ALLEN BOLT M6x10+ ADD	$2.00	2
21	A00025-21-01	WASHER 6.5X1.5X18+ ADD	$2.00	1
22	A00011-19-02	ALLEN BOLT M6X16+ ADD	$2.00	1
23	A00295-09-00	CAMSHAFT STOPPER PLATE+ ADD	$3.50	1
24	A00296-09-00	CYLINDER HEAD SEAL+ ADD	$12.30	1
25	A00297-09-00	TIMING CHAIN+ ADD	$45.50	1
26	A00298-09-00	FRONT CAM CHAIN SLIDER+ ADD	$26.30	1
27	A00299-09-00	REAR CAM CHAIN SLIDER+ ADD	$26.30	1
28	A00300-09-00	BUSHING+ ADD	$8.00	1
29	A00018-19-03	HEX BOLT M5x25+ ADD	$2.00	1
