All 2017 SSR SR70AUTO schematics

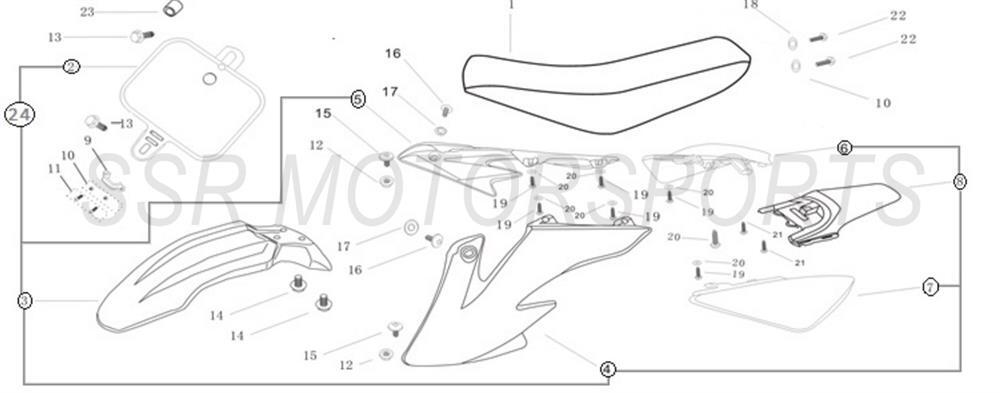

2017 SSR SR70AUTO - Body Parts Diagram

QTY shows the factory order-entry default, not a verified quantity required for this assembly. Check the part number, VIN restrictions and quantity before requesting.

Some factory table references could not be located on the drawing. Original table references and parts are retained without invented callouts.

Click a blue Part # to see its supported official catalog listings. Click the Description to add or remove the part from your Parts Request.

2017 SSR SR70AUTO - Body Parts Diagram
FIND & SELECT YOUR PARTS
PART #: Click to view supported official catalog listings.
DESCRIPTION: Click to add/remove from your Parts Request.
NO. PART # DESCRIPTION MSRP QTY
1 A00717-02-00 SEAT LOW+ ADD $52.50 1
2 A00677-02-02 FRONT NUMBER PLATE BLACK+ ADD $12.30 1
2 A00677-02-01 FRONT NUMBER PLATE WHITE+ ADD $12.30 1
2 A00677-02-04 FRONT NUMBER PLATE GREEN+ ADD $12.30 1
2 A00677-02-12 FRONT NUMBER PLATE BLUE+ ADD $12.30 1
2 A00677-02-18 FRONT NUMBER PLATE RED+ ADD $12.30 1
2 A00677-02-03 FRONT NUMBER PLATE ORANGE+ ADD $12.30 1
3 A00678-02-02 FRONT FENDER BLACK+ ADD $12.30 1
3 A00678-02-01 FRONT FENDER WHITE+ ADD $12.30 1
3 A00678-02-04 FRONT FENDER GREEN+ ADD $12.30 1
3 A00678-02-12 FRONT FENDER BLUE+ ADD $12.30 1
3 A00678-02-18 FRONT FENDER RED+ ADD $12.30 1
3 A00678-02-03 FRONT FENDER ORANGE+ ADD $12.30 1
4 A00679-02-02 LEFT FUEL TANK SHROUD BLACK+ ADD $12.30 1
4 A00679-02-01 LEFT FUEL TANK SHROUD WHITE+ ADD $12.30 1
4 A00679-02-04 LEFT FUEL TANK SHROUD GREEN+ ADD $12.30 1
4 A00679-02-12 LEFT FUEL TANK SHROUD BLUE+ ADD $12.30 1
4 A00679-02-18 LEFT FUEL TANK SHROUD RED+ ADD $12.30 1
4 A00679-02-03 LEFT FUEL TANK SHROUD ORANGE+ ADD $12.30 1
5 A00680-02-02 RIGHT FUEL TANK SHROUD BLACK+ ADD $12.30 1
5 A00680-02-01 RIGHT FUEL TANK SHROUD WHITE+ ADD $12.30 1
5 A00680-02-04 RIGHT FUEL TANK SHROUD GREEN+ ADD $12.30 1
5 A00680-02-12 RIGHT FUEL TANK SHROUD BLUE+ ADD $12.30 1
5 A00680-02-18 RIGHT FUEL TANK SHROUD RED+ ADD $12.30 1
5 A00680-02-03 RIGHT FUEL TANK SHROUD ORANGE+ ADD $12.30 1
6 A00681-02-02 RIGHT REAR NUMBER PLATE BLACK+ ADD $12.30 1
6 A00681-02-01 RIGHT REAR NUMBER PLATE WHITE+ ADD $12.30 1
6 A00681-02-04 RIGHT REAR NUMBER PLATE GREEN+ ADD $12.30 1
6 A00681-02-12 RIGHT REAR NUMBER PLATE BLUE+ ADD $12.30 1
6 A00681-02-18 RIGHT REAR NUMBER PLATE RED+ ADD $12.30 1
6 A00681-02-03 RIGHT REAR NUMBER PLATE ORANGE+ ADD $12.30 1
7 A00682-02-02 LEFT REAR NUMBER PLATE BLACK+ ADD $12.30 1
7 A00682-02-01 LEFT REAR NUMBER PLATE WHITE+ ADD $12.30 1
7 A00682-02-04 LEFT REAR NUMBER PLATE GREEN+ ADD $12.30 1
7 A00682-02-12 LEFT REAR NUMBER PLATE BLUE+ ADD $12.30 1
7 A00682-02-18 LEFT REAR NUMBER PLATE RED+ ADD $12.30 1
7 A00682-02-03 LEFT REAR NUMBER PLATE ORANGE+ ADD $12.30 1
8 A00683-02-02 REAR FENDER BLACK+ ADD $12.30 1
8 A00683-02-01 REAR FENDER WHITE+ ADD $12.30 1
8 A00683-02-04 REAR FENDER GREEN+ ADD $12.30 1
8 A00683-02-12 REAR FENDER BLUE+ ADD $12.30 1
8 A00683-02-18 REAR FENDER RED+ ADD $12.30 1
8 A00683-02-03 REAR FENDER ORANGE+ ADD $12.30 1
9 A00684-02-00 FRONT BRAKE CABLE/HOSE GUIDE WHITE+ ADD $2.00 1
10 A00348-22-04 LOCKNUT M4+ ADD $2.00 2
11 A00009-20-01 PHILLIPS BOLT M4X12+ ADD $2.00 2
12 A00093-22-03 FLANGE NUT M6 (SILVER -OR- BLACK)+ ADD $2.00 2
13 A00002-19-01 FLANGE BOLT M6X16+ ADD $2.00 2
14 A00008-19-03 FLANGE BOLT M6X12+ ADD $2.00 2
15 A00003-20-01 SCREW M6X16+ ADD $2.00 2
16 A00010-19-29 PAN HEAD PHILLIPS BOLT M6X10+ ADD $2.00 2
17 A00016-21-01 RUBBER WASHER 6X17X3.5+ ADD $2.00 2
18 A00011-21-01 WASHER M6X18X1.5+ ADD $2.00 2
19 A00010-20-03 ST SCREW ST4.2X16+ ADD $2.00 7
20 A00017-21-01 WASHER 6X12X1.5+ ADD $2.00 6
21 A00002-20-03 ST SCREW ST4.2X12+ ADD $2.00 2
22 A00126-19-19 BUTTON HEAD ALLEN BOLT M6X20+ ADD $2.00 2
23 A00685-02-00 SPACER 8X16XH6.5+ ADD $2.00 1
24 A00936-02-02 COMPLETE PLASTIC KIT BLACK+ ADD $42.00 1
24 A00936-02-01 COMPLETE PLASTIC KIT WHITE+ ADD $42.00 1
24 A00936-02-04 COMPLETE PLASTIC KIT GREEN+ ADD $42.00 1
24 A00936-02-12 COMPLETE PLASTIC KIT BLUE+ ADD $42.00 1
24 A00936-02-18 COMPLETE PLASTIC KIT RED+ ADD $42.00 1
24 A00936-02-03 COMPLETE PLASTIC KIT ORANGE+ ADD $42.00 1
25 A00009-20-03 ST SCREW ST4.8X16+ ADD $2.00 1

Selected Parts (0)

Estimated Total: $0.00
WHERE USED
WHERE USED

Exact SKU listings from the official SSR fitment chart and individually captured factory catalogs. Check VIN and source restrictions; a listing is not an unrestricted interchangeability guarantee.
