Product Description

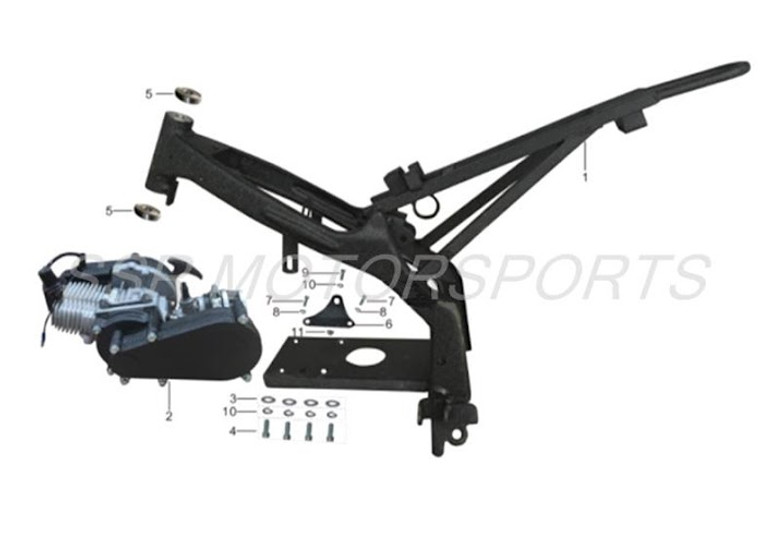

| FRAME / ENGINE | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | PRICE |
| 1 | A00536-11-00 | FRAME | 1 | Pc. | $63.00 | |
| 2 | A02496-09-00 | COMPLETE ENGINE ASSY | 1 | Assy. | $99.00 | |
| 3 | A00104-21-01 | WASHER | M6 | 4 | Pcs. | $1.00 |
| 4 | A00011-19-02 | ALLEN BOLT | M6X16 | 4 | Pcs. | $1.00 |
| 5 | A00011-28-00 | BEARING | 6200Z | 2 | Pcs. | $6.00 |
| 6 | A00537-11-00 | ENGINE MOUNTING BRACKET | 1 | Pc. | $6.00 | |
| 7 | A00025-19-02 | ALLEN BOLT | M5X12 | 2 | Pcs. | $1.00 |
| 8 | A00259-21-01 | LOCK WASHER | M5 | 2 | Pcs. | $1.00 |
| 9 | A00406-19-09 | PAN HEAD ALLEN BOLT | M6X20 | 1 | Pc. | $1.00 |
| 10 | A00254-21-01 | LOCK WASHER | M6 | 4 | Pcs. | $1.00 |
| 11 | A00332-22-00 | FLANGE LOCK NUT | M6 | 1 | Pc. | $1.00 |
