Product Description

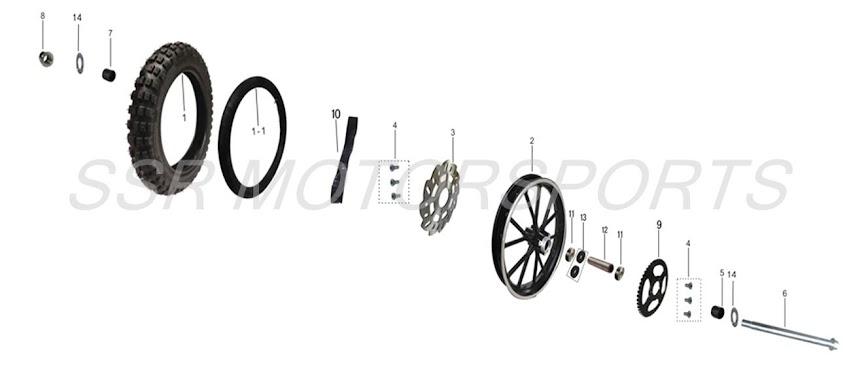

REAR WHEEL ASSY | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | PRICE |
1 | A00322-18-00 | FRONT/REAR TIRE | 2.50-10 | 1 | Pc. | $22.00 |
1-1 | A00219-18-00 | INNER TUBE | 2.50-10 | 1 | Pc. | $11.00 |
2 | A00564-18-00 | REAR WHEEL | 1.75-10 BLACK/SILVER LIP | 1 | Pc. | $32.00 |
3 | A00706-04-00 | FRONT/REAR BRAKE ROTOR | 1 | Pc. | $13.00 | |
4 | A00403-19-00 | ROTOR BOLT | M6X16 | 6 | Pcs. | $1.00 |
5 | A00532-18-00 | REAR LEFT WHEEL SPACER | 12.4X15X12 | 1 | Pc. | $2.00 |
6 | A00535-18-00 | REAR WHEEL AXLE | M12X145 | 1 | Pc. | $5.00 |
7 | A00530-18-00 | REAR RIGHT WHEEL SPACER | 12.4X15X7 | 1 | Pc. | $2.00 |
8 | A00333-22-03 | FLANGE NUT | M12 | 1 | Pc. | $1.50 |
9 | A00291-07-00 | REAR SPROCKET | T8F / 54T | 1 | Pc. | $13.00 |
10 | A00334-18-00 | RIM STRIP | 10" | 1 | Pc. | $4.00 |
11 | A00115-28-00 | WHEEL BEARING | 6001RS | 2 | Pcs. | $4.00 |
12 | A00536-18-00 | REAR WHEEL BEARING SPACER | 12.4X16X80.5 | 1 | Pc. | $2.00 |
13 | A00534-18-00 | BUSHING | 15X25X5 | 2 | Pc. | $1.00 |
14 | A00263-21-01 | WASHER | 12X24X2 | 2 | Pcs. | $1.00 |
