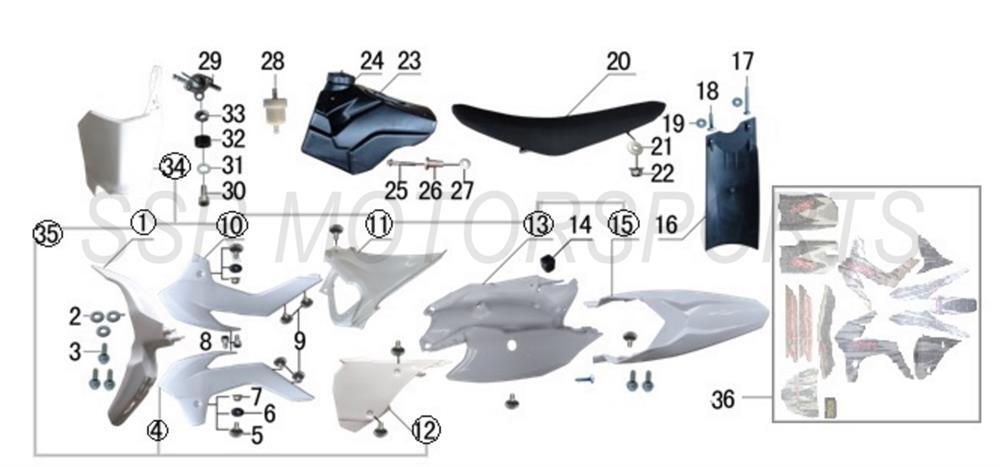

2019 SSR SR150 - Body Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00650-02-01 | FRONT FENDER WHITE+ ADD | $45.50 | 1 |
| 1 | A00650-02-12 | FRONT FENDER BLUE+ ADD | $45.50 | 1 |
| 2 | A00011-21-01 | WASHER M6X18X1.5+ ADD | $2.00 | 4 |
| 3 | A00002-19-01 | FLANGE BOLT M6X16+ ADD | $2.00 | 5 |
| 4 | A00651-02-01 | LEFT SHROUD WHITE+ ADD | $24.50 | 1 |
| 4 | A00651-02-12 | LEFT SHROUD BLUE+ ADD | $24.50 | 1 |
| 5 | A00003-20-01 | SCREW M6X16+ ADD | $2.00 | 9 |
| 6 | A00804-02-00 | COLLAR 7x5x9.5x2x20+ ADD | $2.00 | 2 |
| 7 | A00001-22-01 | NUT M6+ ADD | $2.00 | 2 |
| 8 | A00010-19-02 | ALLEN BOLT M6x10+ ADD | $2.00 | 2 |
| 9 | A00010-19-09 | PAN HEAD ALLEN BOLT M6X10+ ADD | $2.00 | 4 |
| 10 | A00652-02-01 | RIGHT SHROUD WHITE+ ADD | $24.50 | 1 |
| 10 | A00652-02-12 | RIGHT SHROUD BLUE+ ADD | $24.50 | 1 |
| 11 | A00653-02-01 | RIGHT FRAME COVER WHITE+ ADD | $38.50 | 1 |
| 11 | A00653-02-12 | RIGHT FRAME COVER BLUE+ ADD | $38.50 | 1 |
| 12 | A00654-02-01 | LEFT FRAME COVER WHITE+ ADD | $15.80 | 1 |
| 12 | A00654-02-12 | LEFT FRAME COVER BLUE+ ADD | $15.80 | 1 |
| 13 | A00655-02-01 | REAR SIDE NUMBER PLATE SET WHITE+ ADD | $62.00 | 1 |
| 14 | A00805-02-00 | RUBBER GROMMET+ ADD | $2.00 | 1 |
| 15 | A00656-02-01 | REAR FENDER WHITE+ ADD | $31.50 | 1 |
| 15 | A00656-02-12 | REAR FENDER BLUE+ ADD | $31.50 | 1 |
| 16 | A00657-02-02 | MUD FLAP BLACK+ ADD | $14.00 | 1 |
| 17 | A00014-20-03 | SCREW 4.2X30+ ADD | $2.00 | 1 |
| 18 | A00009-20-03 | ST SCREW ST4.8X16+ ADD | $2.00 | 2 |
| 19 | A00106-21-01 | WASHER 5X10+ ADD | $2.00 | 2 |
| 20 | A00660-02-00 | SEAT+ ADD | $85.80 | 1 |
| 21 | A00004-21-01 | WASHER M8+ ADD | $2.00 | 1 |
| 22 | A00100-22-34 | FLANGE LOCKNUT M8+ ADD | $2.00 | 1 |
| 23 | A00257-12-00 | FUEL TANK+ ADD | $89.30 | 1 |
| 24 | A00258-12-00 | FUEL TANK CAP+ ADD | $14.00 | 1 |
| 25 | A00021-19-01 | FLANGE BOLT M6X40+ ADD | $2.50 | 1 |
| 26 | A00259-12-00 | COLLAR 22X6.5X27X12+ ADD | $2.00 | 1 |
| 27 | A00107-21-01 | WASHER 10X22X1.5+ ADD | $2.00 | 1 |
| 28 | A00260-12-00 | FUEL FILTER+ ADD | $12.30 | 1 |
| 29 | A00338-12-00 | FUEL PETCOCK+ ADD | $26.30 | 1 |
| 30 | A00011-19-02 | ALLEN BOLT M6X16+ ADD | $2.00 | 1 |
| 31 | A00002-21-02 | LOCK WASHER M6+ ADD | $2.00 | 1 |
| 32 | A00400-12-00 | GROMMET+ ADD | $2.00 | 1 |
| 33 | A00093-22-03 | FLANGE NUT M6 (SILVER -OR- BLACK)+ ADD | $2.00 | 1 |
| 34 | A00658-02-01 | FRONT NUMBER PLATE WHITE+ ADD | $24.50 | 1 |
| 35 | A00931-02-01 | COMPLETE PLASTIC KIT WHITE+ ADD | $210.00 | 1 |
| 35 | A00931-02-12 | COMPLETE PLASTIC KIT BLUE+ ADD | $210.00 | 1 |
| 36 | A00988-02-00 | GRAPHICS KIT+ ADD | $40.30 | 1 |
