Electrical Components

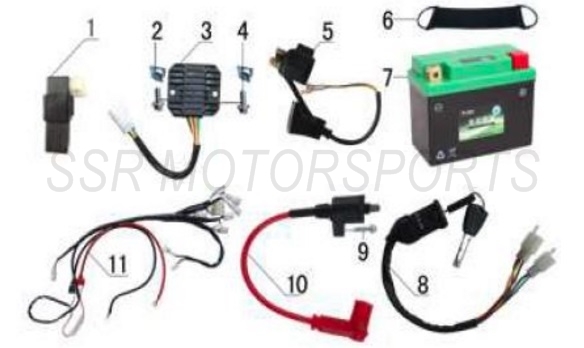

2019 SSR SR150 - Electrical Components Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00410-08-00 | CDI+ ADD | $28.00 | 1 |
| 2 | A00001-22-05 | CLIP NUT M6+ ADD | $2.00 | 2 |
| 3 | A00411-08-00 | REGULATOR / RECTIFIER+ ADD | $35.00 | 1 |
| 4 | A00418-19-08 | CASE FLANGE BOLT M6X16+ ADD | $2.00 | 2 |
| 5 | A00412-08-00 | STARTER RELAY+ ADD | $28.00 | 1 |
| 6 | A00413-08-00 | BATTERY STRAP 105MM+ ADD | $15.80 | 1 |
| 7 | YTX4L-BS | BATTERY YTX4L-BS+ ADD | $75.30 | 1 |
| 8 | A00415-08-00 | IGNITION SWITCH+ ADD | $45.50 | 1 |
| 9 | A00006-19-01 | FLANGE BOLT M6X20+ ADD | $2.00 | 1 |
| 10 | A00416-08-00 | IGNITION COIL W/ CAP+ ADD | $35.00 | 1 |
| 11 | A00417-08-00 | WIRE HARNESS+ ADD | $59.50 | 1 |
