Exhaust System

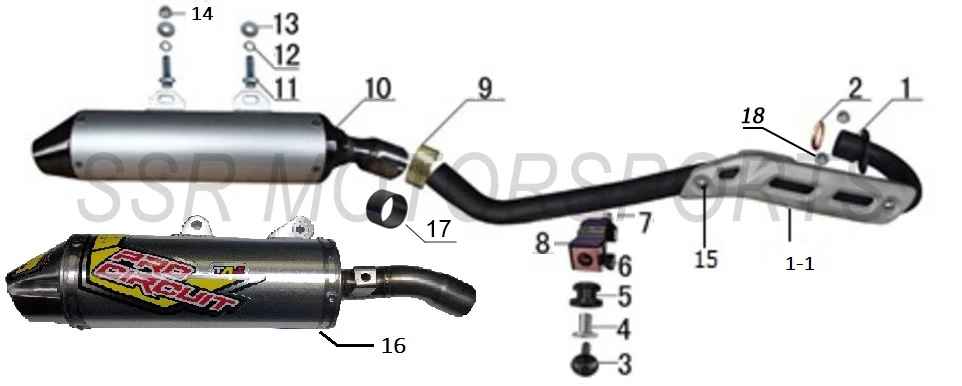

2019 SSR SR150 - Exhaust System Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00061-10-00 | EXHAUST HEAD PIPE+ ADD | $59.50 | 1 |
| 1-1 | A00513-10-00 | EXHAUST HEAT SHIELD+ ADD | $21.00 | 1 |
| 2 | A00097-13-00 | EXHAUST GASKET+ ADD | $4.40 | 1 |
| 3 | A00003-19-01 | FLANGE BOLT M6X25+ ADD | $2.00 | 1 |
| 4 | A00062-10-00 | COLLAR 6X9X18X13X15MM+ ADD | $2.00 | 1 |
| 5 | A00063-10-00 | GROMMET+ ADD | $2.50 | 1 |
| 6 | A00001-22-05 | CLIP NUT M6+ ADD | $2.00 | 1 |
| 7 | A00064-10-00 | EXHAUST PIPE HANGER 29X32+ ADD | $8.80 | 1 |
| 8 | A00113-10-00 | EXHAUST PIPE MOUNT CLAMP+ ADD | $8.80 | 1 |
| 9 | A00066-10-00 | CLAMP 40-43+ ADD | $8.80 | 1 |
| 10 | A00065-10-00 | MUFFLER+ ADD | $106.80 | 1 |
| 11 | A00007-19-01 | FLANGE BOLT M8X25+ ADD | $2.00 | 2 |
| 12 | A00001-21-02 | LOCK WASHER 8X13X2+ ADD | $2.00 | 2 |
| 13 | A00004-21-01 | WASHER M8+ ADD | $2.00 | 2 |
| 14 | A00100-22-34 | FLANGE LOCKNUT M8+ ADD | $2.00 | 2 |
| 15 | A00041-20-02 | BUTTON HEAD SCREW M6X8+ ADD | $2.00 | 2 |
| 16 | A00065-01-00 | PRO CIRCUIT T4S MUFFLER W/ SPARK ARRESTOR OPTIONAL+ ADD | $299.00 | 1 |
| 17 | A00280-13-00 | PACKING GASKET+ ADD | $12.30 | 1 |
| 18 | A00003-22-03 | FLANGE LOCKNUT M8+ ADD | $2.00 | 2 |
