Right Crankcase Half

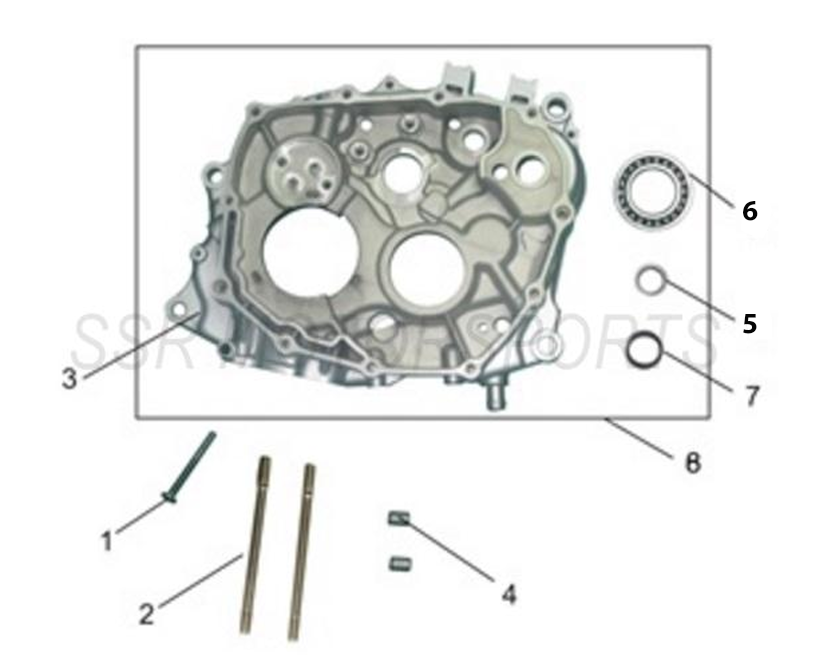

2019 SSR SR150 - Right Crankcase Half Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00014-19-03 | BOLT M6X53+ ADD | $2.00 | 1 |
| 2 | A00024-19-04 | CYLINDER STUD M8X122+ ADD | $3.50 | 2 |
| 3 | A02270-09-00 | RIGHT CRANKCASE HALF+ ADD | $154.00 | 1 |
| 4 | A00002-23-00 | DOWEL PIN M10X14+ ADD | $2.00 | 2 |
| 5 | A00066-28-00 | BEARING NK1512+ ADD | $21.00 | 1 |
| 6 | A00067-28-00 | BEARING 6006+ ADD | $12.30 | 1 |
| 7 | A00068-28-00 | BALL BEARING HK2110+ ADD | $14.00 | 1 |
| 8 | A02271-09-00 | RIGHT CRANKCASE ASSY+ ADD | $176.80 | 1 |
| 9 | A03036-09-00 | CRANKCASE BREATHER HOSE+ ADD | $8.00 | 1 |
