Stator & Stator Cover

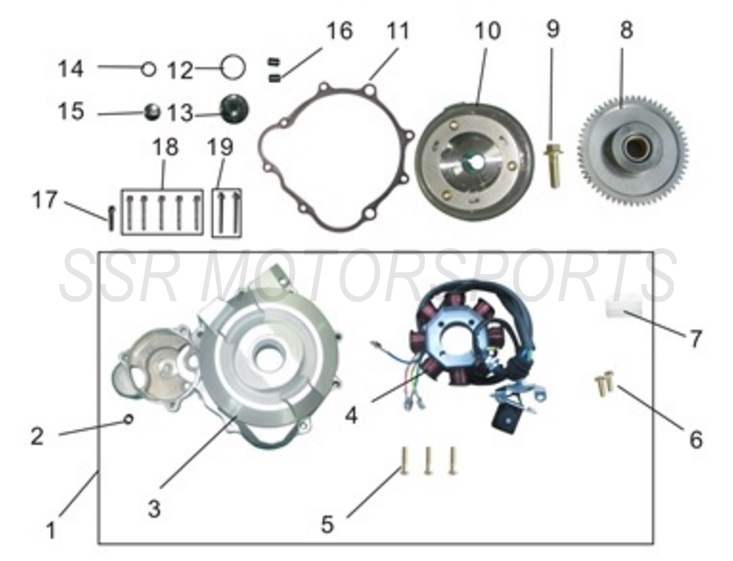

2019 SSR SR150 - Stator & Stator Cover Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A02304-09-00 | STATOR COVER W/ STATOR ASSY+ ADD | $187.30 | 1 |
| 2 | A00063-28-00 | NEEDLE BEARING HK1010+ ADD | $8.00 | 1 |
| 3 | A02305-09-00 | STATOR COVER+ ADD | $99.80 | 1 |
| 4 | A02306-09-00 | STATOR ASSY+ ADD | $92.80 | 1 |
| 5 | A00018-19-03 | HEX BOLT M5x25+ ADD | $2.00 | 3 |
| 6 | A00002-20-01 | PANHEAD SCREW M5X16+ ADD | $2.00 | 2 |
| 7 | A02307-09-00 | CABLE CONNECTOR+ ADD | $4.40 | 1 |
| 8 | A02308-09-00 | STARTER GEAR+ ADD | $68.30 | 1 |
| 9 | A00005-19-03 | FLANGE BOLT M10X35+ ADD | $2.50 | 1 |
| 10 | A02913-09-00 | ROTOR+ ADD | $106.80 | 1 |
| 11 | A00224-13-00 | STATOR COVER GASKET+ ADD | $19.30 | 1 |
| 12 | A00055-27-00 | O-RING 27.4X2.4+ ADD | $2.00 | 1 |
| 13 | A02310-09-00 | CRANK INSPECTION PLUG+ ADD | $15.80 | 1 |
| 14 | A00056-27-00 | O-RING 13.8X2.5+ ADD | $2.60 | 1 |
| 15 | A02311-09-00 | INSPECTION PLUG CHROME+ ADD | $15.80 | 1 |
| 16 | A00002-23-00 | DOWEL PIN M10X14+ ADD | $2.00 | 2 |
| 17 | A00421-19-08 | CASE FLANGE BOLT M6X25+ ADD | $2.00 | 1 |
| 18 | A00426-19-08 | CASE FLANGE BOLT M6X40+ ADD | $2.00 | 5 |
| 19 | A00428-19-08 | CASE FLANGE BOLT M6X50+ ADD | $2.00 | 2 |
