Suspension Components

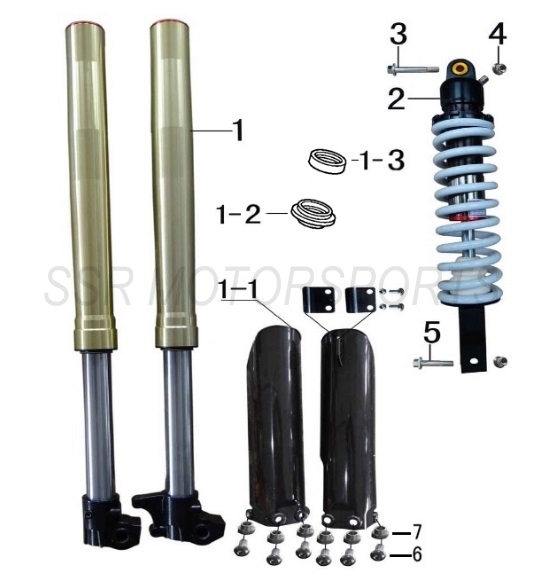

2019 SSR SR150 - Suspension Components Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00205-16-00 | FRONT FORK SET 810MMX51X54+ ADD | $329.00 | 1 |
| 1-1 | A00649-02-02 | FORK PROTECTOR SET BLACK+ ADD | $42.00 | 1 |
| 1-2 | A00072-26-00 | FORK DUST SEAL 37MM+ ADD | $12.30 | 2 |
| 1-3 | A00073-26-00 | FORK SEAL 37X50X11+ ADD | $12.30 | 2 |
| 2 | A00206-16-00 | REAR SHOCK ABSORBER 450MM+ ADD | $210.00 | 1 |
| 3 | A00010-19-01 | FLANGE BOLT M10X60+ ADD | $4.40 | 1 |
| 4 | A00004-22-34 | FLANGE LOCKNUT M10+ ADD | $2.50 | 2 |
| 5 | A00005-19-07 | SPECIAL BOLT M10x45+ ADD | $3.50 | 1 |
| 6 | A00123-19-02 | BUTTON HEAD ALLEN BOLT M6X16+ ADD | $2.00 | 6 |
| 7 | A00514-16-00 | COLLAR+ ADD | $2.00 | 6 |
