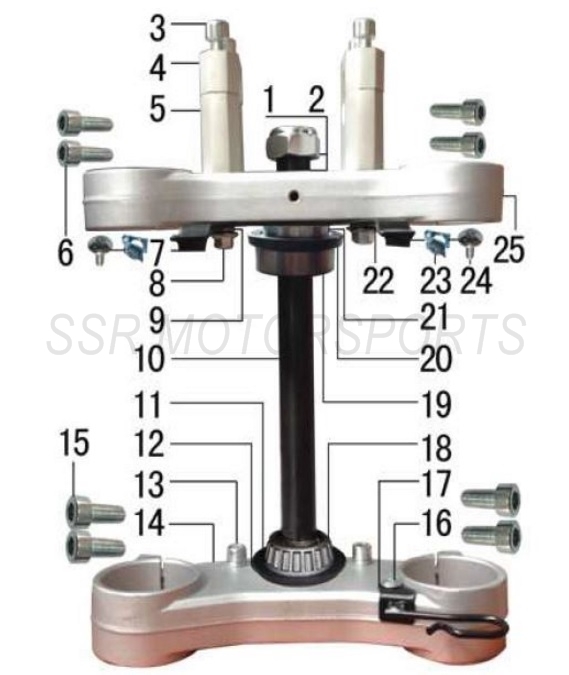

2019 SSR SR150 - Triple Clamps Parts Diagram

Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.

2019 SSR SR150 - Triple Clamps Parts Diagram
FIND & SELECT YOUR PARTS
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
NO. PART # DESCRIPTION MSRP QTY
1 A00064-21-01 WASHER 23X35+ ADD $2.60 1
2 A00086-22-01 NUT M22 OPEN TOP+ ADD $6.10 1
3 A00005-19-02 ALLEN BOLT M8X30+ ADD $2.00 4
4 A00352-15-00 UPPER HANDLEBAR CLAMP AF7 28.5+ ADD $8.80 2
5 A00353-15-00 LOWER HANDLEBAR CLAMP AF7 28.5+ ADD $12.30 2
6 A00124-19-02 ALLEN BOLT M6X25+ ADD $2.00 4
7 A00803-02-00 FRONT NUMBER PLATE BRACKET+ ADD $2.60 1
8 A00016-19-01 FLANGE BOLT M8x45+ ADD $2.50 4
9 A00004-21-01 WASHER M8+ ADD $2.00 4
10 A00141-15-00 STEERING STEM J2D (264mm)+ ADD $38.50 1
11 A00074-26-00 DUST SEAL+ ADD $4.40 1
12 A00102-21-01 WASHER 23.5x35x1+ ADD $2.00 1
13 A00003-19-02 ALLEN BOLT M8x16+ ADD $2.00 2
14 A00358-15-00 LOWER TRIPLE CLAMP+ ADD $72.50 1
15 A00125-19-02 ALLEN BOLT M8X25+ ADD $2.00 4
16 A00147-15-00 FLANGE BOLT M6X12+ ADD $2.00 1
17 A00148-15-00 FRONT BRAKE HOSE GUIDE+ ADD $8.00 1
18 A00343-15-00 NEEDLE BEARING 23X44 320-23+ ADD $19.30 1
19 A00149-15-00 STEERING STEM BEARING 22X44 320-22+ ADD $21.00 1
20 A00075-26-00 DUST SEAL+ ADD $4.40 1
21 A00030-22-01 NUT M22x1x7+ ADD $6.10 1
22 A00103-21-01 WASHER 9X17X3.5+ ADD $2.00 1
23 A00001-22-05 CLIP NUT M6+ ADD $2.00 2
24 A00123-19-02 BUTTON HEAD ALLEN BOLT M6X16+ ADD $2.00 2
25 A00357-15-00 UPPER TRIPLE CLAMP+ ADD $72.50 1
