Cylinder Head Covers
All 2019 SSR SR160TR schematics

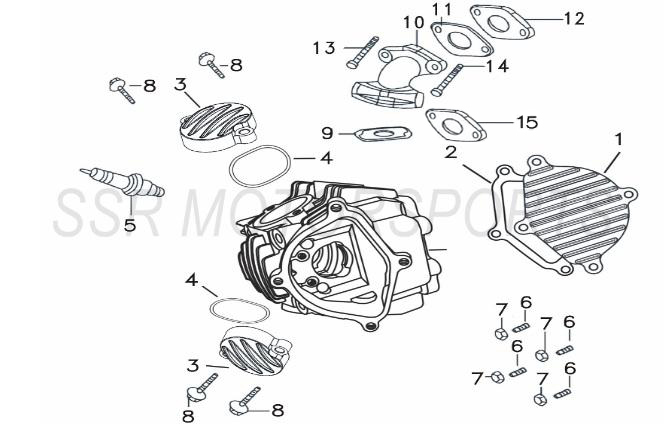

2019 SSR SR160TR - Cylinder Head Covers Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A01771-09-00 | TIMING COVER+ ADD | $24.50 | 1 |
| 2 | A00172-13-00 | LEFT CYLINDER HEAD COVER GASKET+ ADD | $8.80 | 1 |
| 3 | A01772-09-00 | VALVE COVER+ ADD | $21.00 | 2 |
| 4 | A00100-27-00 | O-RING+ ADD | $4.40 | 2 |
| 5 | CR7HSA | SPARK PLUG CR7HSA+ ADD | $9.60 | 1 |
| 6 | A00021-19-04 | STUD M6x28+ ADD | $2.00 | 4 |
| 7 | A00003-22-36 | FLANGE CAP NUT M6+ ADD | $2.00 | 4 |
| 8 | A00003-19-05 | FLANGE BOLT M6X16+ ADD | $2.00 | 4 |
| 9 | A00173-13-00 | INTAKE MANIFOLD GASKET+ ADD | $4.40 | 1 |
| 10 | A00235-14-00 | INTAKE MANIFOLD+ ADD | $42.00 | 1 |
| 11 | A00174-13-00 | INLET GASKET 45/28MM+ ADD | $4.40 | 1 |
| 12 | A00231-14-00 | INTAKE INSULATOR+ ADD | $8.80 | 1 |
| 13 | A00419-19-08 | CASE FLANGE BOLT M6X20+ ADD | $2.00 | 2 |
| 14 | A00423-19-08 | CASE FLANGE BOLT M6X30+ ADD | $2.00 | 2 |
| 15 | A00373-14-00 | CYLINDER INSULATOR 45/28MM+ ADD | $8.80 | 1 |
