Fuel Tank
All 2020 SSR SR170TX schematics

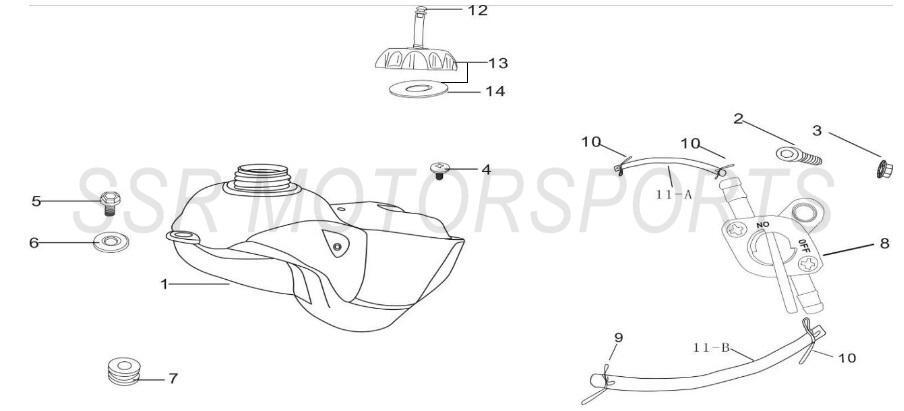

2020 SSR SR170TX - Fuel Tank Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00353-12-00 | FUEL TANK BLACK+ ADD | $64.80 | 1 |
| 2 | A00008-19-02 | ALLEN BOLT M6X20+ ADD | $2.00 | 1 |
| 3 | A00093-22-03 | FLANGE NUT M6 (SILVER -OR- BLACK)+ ADD | $2.00 | 1 |
| 4 | A00006-20-01 | PHILLIPS BOLT M6X12+ ADD | $2.00 | 1 |
| 5 | A00007-19-01 | FLANGE BOLT M8X25+ ADD | $2.00 | 1 |
| 6 | A00012-21-01 | FENDER WASHER 8x28x1.5+ ADD | $2.00 | 1 |
| 7 | A00356-12-00 | RUBBER GROMMET+ ADD | $2.00 | 1 |
| 8 | A00338-12-00 | FUEL PETCOCK+ ADD | $26.30 | 1 |
| 9 | A00001-24-03 | WIRE HOSE CLAMP 10+ ADD | $2.00 | 1 |
| 10 | A00002-24-03 | WIRE HOSE CLAMP 7.5+ ADD | $2.00 | 5 |
| 11 | A00360-12-00 | FUEL HOSE SET A=300MM, B=50MM, C=150MM+ ADD | $6.10 | 1 |
| 12 | A00332-12-00 | FUEL TANK CAP VENT+ ADD | $6.10 | 1 |
| 13 | A00343-12-00 | FUEL TANK CAP BILLET ALUMINUM (110DX)+ ADD | $38.50 | 1 |
| 14 | A00355-12-00 | FUEL TANK CAP SEAL 19.5X50.5XT3+ ADD | $6.10 | 1 |
