Airbox
← All 2021 Benelli TNT 135 diagrams

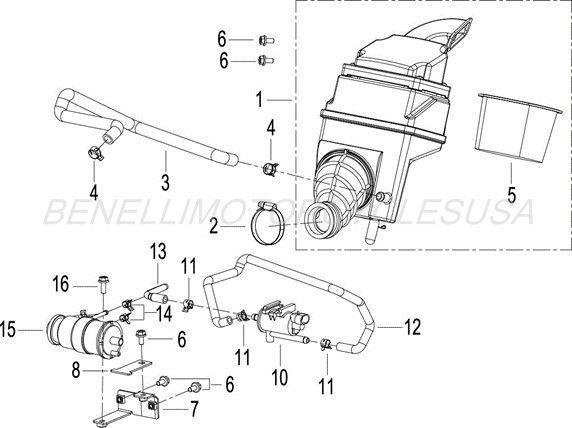

2021 Benelli TNT 135 - Airbox Parts Diagram
Click a blue Part # to see its listed TNT135 catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view TNT135 catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | 49100V020000 | AIR BOX ASSY+ ADD | $30.00 | 1 |
| 2 | 49016N070000 | HOSE CLAMP+ ADD | $3.50 | 1 |
| 3 | 49025V020000 | AIR BOX HOSE+ ADD | $8.00 | 1 |
| 4 | 49016N250000 | SPRING HOSE CLAMP 15.5x10x1+ ADD | $1.50 | 2 |
| 5 | 49202V020000 | AIR FILTER ELEMENT+ ADD | $13.00 | 1 |
| 6 | B0109060126H | FLANGE BOLT M6X12+ ADD | $1.50 | 5 |
| 7 | 57050V020000 | EVAP CANISTER MOUNTING BRACKET+ ADD | $6.00 | 1 |
| 8 | 57055J690000 | CANISTER VALVE MOUNTING BRACKET+ ADD | $1.50 | 1 |
| 10 | 49710N070000 | EGR VALVE+ ADD | $59.00 | 1 |
| 11 | 50307J140002 | SPRING HOSE CLAMP 10+ ADD | $2.50 | 3 |
| 12 | 49922V020002 | HOSE I+ ADD | $7.00 | 1 |
| 13 | 49923V020002 | HOSE II+ ADD | $3.50 | 1 |
| 14 | 50306T450010 | SPRING HOSE CLAMP 8+ ADD | $1.50 | 2 |
| 15 | 49910N210001 | CHARCOAL CANISTER+ ADD | $24.00 | 1 |
| 16 | B0109060166H | FLANGE BOLT M6X16+ ADD | $1.50 | 1 |
Selected Parts (0)
Estimated Total: $0.00
TNT135 CATALOG APPLICATIONS
TNT135 CATALOG APPLICATIONS
Exact part-number matches in the 2018–2023 TNT135 parts catalogs.
