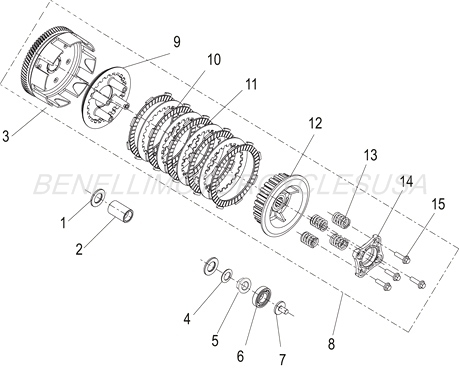

2021 Benelli TNT 135 - Clutch Parts Diagram

Click a blue Part # to see its listed TNT135 catalog applications. Click the Description to add or remove the part from your Parts Request.

FIND & SELECT YOUR PARTS

PART #: Click to view TNT135 catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.

NO.	PART #	DESCRIPTION	MSRP	QTY
1	200064320000	WASHER+ ADD	$1.50	2
2	200044320000	BUSHING+ ADD	$13.00	1
3	209024320000	OUTER CLUTCH BASKET+ ADD	$59.00	1
4	200152140000	DISHED WASHER+ ADD	$1.50	1
5	170044320000	FLANGE NUT M14X1+ ADD	$2.50	1
6	B12016600301	BEARING 16003/P6+ ADD	$11.00	1
7	200183070000	CLUTCH LIFTER PIN+ ADD	$3.50	1
8	209014320000	CLUTCH ASSY+ ADD	$142.00	1
9	200043070000	CLUTCH PRESSURE PLATE+ ADD	$18.00	1
10	200113070010	FRICTION PLATE+ ADD	$6.00	5
11	200093070000	STEEL PLATE+ ADD	$6.00	4
12	209104320000	INNER CLUTCH BASKET+ ADD	$13.00	1
13	209144320000	CLUTCH SPRING+ ADD	$3.50	4
14	200204050000	CLUTCH LIFTER PLATE+ ADD	$11.00	1
15	B01070602263	FLANGE BOLT M6X22+ ADD	$1.50	4
