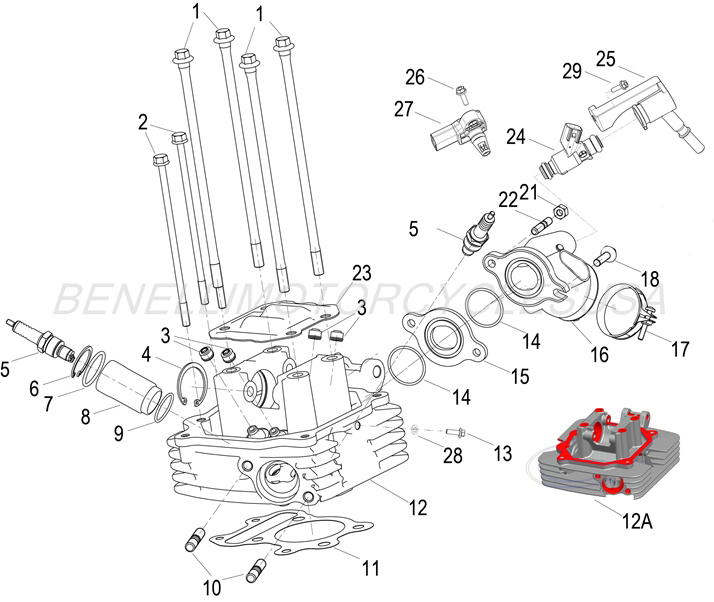

2021 Benelli TNT 135 - Cylinder Head Parts Diagram

Click a blue Part # to see its listed TNT135 catalog applications. Click the Description to add or remove the part from your Parts Request.

FIND & SELECT YOUR PARTS

PART #: Click to view TNT135 catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.

NO.	PART #	DESCRIPTION	MSRP	QTY
1	100114320020	CYLINDER HEAD STUD BOLT+ ADD	$3.50	4
2	B0107061396H	FLANGE BOLT M6X139+ ADD	$2.50	2
3	120015090000	VALVE STEM SEAL+ ADD	$2.50	4
4	B080000035A0	CIRCLIP 35+ ADD	$2.50	1
5	299074320000	SPARK PLUG CR7HSA+ ADD	$9.00	2
6	B08000002800	CIRCLIP+ ADD	$2.00	1
7	120202140000	O-RING 27.4X2.4+ ADD	$2.50	1
8	100014320000	SPARK PLUG CYLINDER+ ADD	$4.00	1
9	100124320000	O-RING+ ADD	$2.50	1
10	10004609001X	EXHAUST STUD M8+ ADD	$3.50	2
11	109074320020	CYLINDER HEAD GASKET+ ADD	$7.00	1
12A	10906432HT01	CYLINDER HEAD W/O VALVES+ ADD	$235.00	1
13	B0107060126H	CASE FLANGE BOLT M6X12+ ADD	$1.50	1
14	B190103000A0	O-RING 30X1.8+ ADD	$1.50	2
15	119074320000	INTAKE INSULATOR+ ADD	$3.50	1
16	119014320020	INTAKE MANIFOLD+ ADD	$18.00	1
17	110043090004	HOSE CLAMP+ ADD	$2.50	1
18	B0107060226H	CASE FLANGE BOLT M6X22+ ADD	$1.50	1
21	B04000600054	NUT M6+ ADD	$1.50	1
22	120073050020	STUD M6X30+ ADD	$1.50	1
23	100034320000	OIL BAFFLE PLATE+ ADD	$7.00	1
24	289035210000	FUEL INJECTOR+ ADD	$150.00	1
25	289044320000	FUEL INJECTOR HOLDER+ ADD	$4.00	1
26	B0107060186H	FLANGE BOLT M6X18+ ADD	$1.50	1
27	290016250000	INTAKE AIR PRESSURE SENSOR+ ADD	$96.00	1
28	280306060000	WASHER 6.4X12.5X1.6+ ADD	$1.50	1
29	B0107050166H	BOLT M5X16+ ADD	$1.50	1
