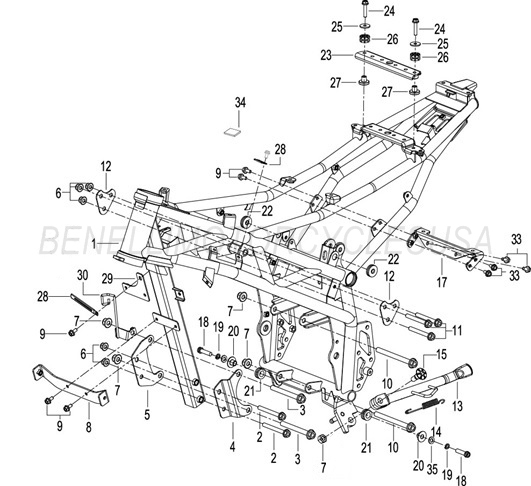

2021 Benelli TNT 135 - Frame Parts Diagram

Click a blue Part # to see its listed TNT135 catalog applications. Click the Description to add or remove the part from your Parts Request.

FIND & SELECT YOUR PARTS

PART #: Click to view TNT135 catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.

NO.	PART #	DESCRIPTION	MSRP	QTY
1	57100V02BH02	FRAME BLACK *OVERSIZE/WEIGHT*+ ADD	$385.00	1
1	57100V02TY02	FRAME RED TY *OVERSIZE/WEIGHT*+ ADD	$385.00	1
1	57100V02U602	FRAME GREEN U6 *OVERSIZE/WEIGHT*+ ADD	$385.00	1
2	B0109080706H	BOLT M8X70+ ADD	$2.00	2
3	B0159100906H	BOLT M10X1.25X90+ ADD	$2.50	2
4	57009V020000	FRONT LEFT ENGINE MOUNTING PLATE+ ADD	$7.00	1
5	57019V020000	FRONT RIGHT ENGINE MOUNTING PLATE+ ADD	$7.00	1
6	B0417080004H	FLANGE LOCKNUT M8+ ADD	$1.50	5
7	B0417101254H	FLANGE LOCKNUT M10+ ADD	$1.50	5
8	59450V020000	OIL COOLER BRACKET+ ADD	$4.00	1
9	B0109060126H	FLANGE BOLT M6X12+ ADD	$1.50	5
10	B0159101106H	FLANGE BOLT M10X110+ ADD	$3.50	2
11	B0109080656H	BOLT M8X65+ ADD	$2.00	3
12	57008V020000	UPPER REAR ENGINE MOUNTING PLATE+ ADD	$2.50	2
13	58700V020000	SIDE STAND+ ADD	$13.00	1
14	57003J360000	SIDE STAND SPRING+ ADD	$2.50	1
15	57005V030100	SIDE STAND BOLT M10X33+ ADD	$2.00	1
17	49360V020000	AIRBOX MOUNTING BRACKET+ ADD	$6.00	1
18	B02810803062	BOLT M8X30+ ADD	$1.50	2
19	B0700000080A	LOCK WASHER M8+ ADD	$1.50	2
20	65613P260000	COLLAR+ ADD	$1.50	2
21	65617H010010	RUBBER GROMMET+ ADD	$1.50	2
22	65618J000000	RUBBER GROMMET+ ADD	$2.00	2
23	58070V020000	SEAT LOCK BRACKET+ ADD	$8.00	1
24	B0109060306H	BOLT M6X30+ ADD	$1.50	2
25	B0709000060H	WASHER M6+ ADD	$1.50	2
26	65618J820000	RUBBER GROMMET+ ADD	$2.00	2
27	08333V020100	COLLAR 6.5X22X4.7X10X11.5+ ADD	$1.50	2
28	58430J000000	WIRE RETAINER+ ADD	$2.00	3
29	57590V020003	REGULATOR / RECTIFIER MOUNTING BRACKET+ ADD	$2.50	1
30	43070V020000	CLUTCH CABLE RETAINER+ ADD	$2.00	1
33	B0109060166H	FLANGE BOLT M6X16+ ADD	$1.50	4
34	58752J00000A	BATTERY CUSHION II+ ADD	$4.00	1
35	B0703000080A	WASHER M8+ ADD	$1.50	2
