Front Brake System
← All 2021 Benelli TNT 135 diagrams

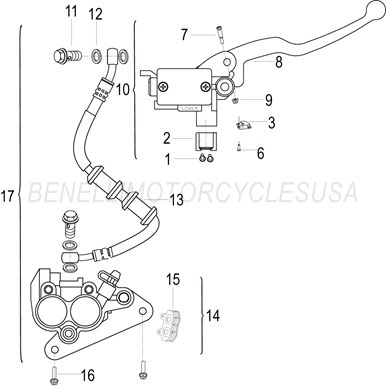

2021 Benelli TNT 135 - Front Brake System Parts Diagram
Click a blue Part # to see its listed TNT135 catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view TNT135 catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | B01400602365 | BOLT M6X23+ ADD | $1.50 | 2 |
| 2 | 45023T010000 | BRAKE MASTER CYLINDER HOLDER+ ADD | $8.00 | 1 |
| 3 | 45300J000000 | FRONT BRAKE LIGHT SWITCH+ ADD | $11.00 | 1 |
| 6 | B0204040122H | SCREW M4X12+ ADD | $1.50 | 1 |
| 7 | 45024J000000 | BRAKE LEVER PIVOT BOLT+ ADD | $1.50 | 1 |
| 8 | 45022J020021 | FRONT BRAKE LEVER+ ADD | $18.00 | 1 |
| 9 | B04160603565 | NUT M6+ ADD | $1.50 | 1 |
| 10 | 45400J020011 | FRONT BRAKE MASTER CYLINDER ASSY+ ADD | $77.00 | 1 |
| 11 | 55037J410000 | BANJO BOLT+ ADD | $2.00 | 2 |
| 12 | 55180J410000 | SEALING WASHER M10+ ADD | $1.50 | 4 |
| 13 | 45200V020000 | FRONT BRAKE HOSE+ ADD | $36.00 | 1 |
| 14 | 45600V02F900 | FRONT BRAKE CALIPER ASSY RED CALIPER+ ADD | $85.00 | 1 |
| 14 | 45500V020100 | FRONT BRAKE CALIPER ASSY BLACK CALIPER+ ADD | $85.00 | 1 |
| 15 | 45120U060000 | FRONT BRAKE PAD SET+ ADD | $21.00 | 1 |
| 16 | B0281080256H | ALLEN BOLT M8X25+ ADD | $1.50 | 2 |
| 17 | 45900V02F900 | FRONT BRAKE ASSY RED CALIPER+ ADD | $101.00 | 1 |
| 17 | 45900V020100 | FRONT BRAKE ASSY BLACK CALIPER+ ADD | $101.00 | 1 |
