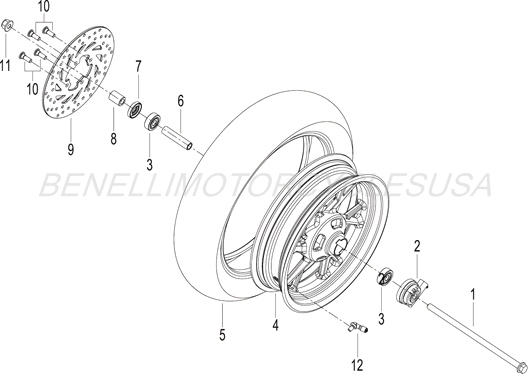

2021 Benelli TNT 135 - Front Wheel Parts Diagram
Click a blue Part # to see its listed TNT135 catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view TNT135 catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | 58303T760101 | FRONT WHEEL AXLE M12X1.25X258+ ADD | $14.00 | 1 |
| 2 | 44200J820004 | SPEEDOMETER DRIVE GEAR+ ADD | $51.00 | 1 |
| 3 | B12016030100 | BEARING 6301-2RS+ ADD | $14.00 | 2 |
| 4 | 44101V020201 | FRONT WHEEL BLACK+ ADD | $124.00 | 1 |
| 4 | 44101V02U600 | FRONT WHEEL GREEN U6+ ADD | $124.00 | 1 |
| 5 | B140107D1206 | FRONT TIRE 120/70-12+ ADD | $48.00 | 1 |
| 6 | 44006V020001 | FRONT WHEEL BEARING SPACER+ ADD | $8.00 | 1 |
| 7 | 44300J000000 | DUST SEAL 20x37x7/8.5+ ADD | $2.50 | 1 |
| 8 | 44016J670101 | FRONT RIGHT WHEEL SPACER+ ADD | $8.00 | 1 |
| 9 | 45033V500000 | FRONT BRAKE ROTOR+ ADD | $60.00 | 1 |
| 10 | B0205080206A | ALLEN BOLT M8X20+ ADD | $1.50 | 4 |
| 11 | B0417121254H | FLANGE LOCKNUT M12+ ADD | $2.00 | 1 |
| 12 | B1403Z201120 | VALVE STEM PVR70+ ADD | $8.00 | 1 |
