← All 2021 Benelli TNT 135 diagrams

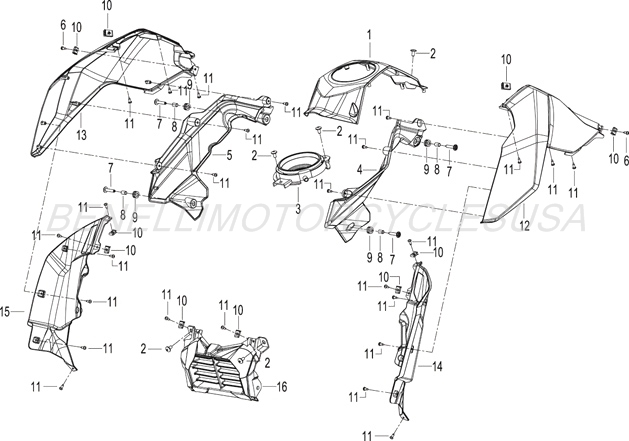

2021 Benelli TNT 135 - Fuel Tank Cowling Parts Diagram

Click a blue Part # to see its listed TNT135 catalog applications. Click the Description to add or remove the part from your Parts Request.

FIND & SELECT YOUR PARTS

PART #: Click to view TNT135 catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.

NO.	PART #	DESCRIPTION	MSRP	QTY
1	65672V02BA10	CENTER FUEL TANK COVER BLACK BA+ ADD	$29.00	1
2	B0283060146H	BUTTON HEAD ALLEN BOLT M6X14+ ADD	$1.50	5
3	65679V020000	FUEL TANK CAP SEAT+ ADD	$8.00	1
4	65673V020000	LEFT SIDE LOWER FUEL TANK TRIM+ ADD	$11.00	1
5	65674V020000	RIGHT SIDE LOWER FUEL TANK TRIM+ ADD	$11.00	1
6	B0507420101H	ST SCREW ST4.2X10+ ADD	$1.50	2
7	B02830602562	BUTTON HEAD ALLEN BOLT M6X25+ ADD	$1.50	4
8	47312T100100	COLLAR+ ADD	$1.50	4
9	43038P250000	RUBBER GROMMET+ ADD	$2.50	4
10	65801T020201	CLIP NUT ST4.2+ ADD	$1.50	10
11	B0507420130H	ST SCREW ST4.2X13+ ADD	$1.50	26
12	50015V02015Z	LEFT FUEL TANK COVER BLACK B2 W/ STICKER+ ADD	$33.00	1
12	50015V02016Z	LEFT FUEL TANK COVER RED F9 W/ STICKER+ ADD	$33.00	1
12	50015V02018Z	LEFT FUEL TANK COVER GREEN U6 W/ STICKER+ ADD	$39.00	1
12	50015V02019Z	LEFT FUEL TANK COVER WHITE WF W/ STICKER+ ADD	$33.00	1
13	50016V02015Z	RIGHT FUEL TANK COVER BLACK B2 W/ STICKER+ ADD	$33.00	1
13	50016V02016Z	RIGHT FUEL TANK COVER RED F9 W/ STICKER+ ADD	$33.00	1
13	50016V02018Z	RIGHT FUEL TANK COVER GREEN U6 W/ STICKER+ ADD	$39.00	1
13	50016V02019Z	RIGHT FUEL TANK COVER WHITE WF W/ STICKER+ ADD	$33.00	1
14	65675V020000	LEFT SIDE INNER FUEL TANK TRIM+ ADD	$10.00	1
15	65676V020000	RIGHT SIDE INNER FUEL TANK TRIM+ ADD	$10.00	1
16	65677V020003	OIL COOLER COVER+ ADD	$11.00	1
