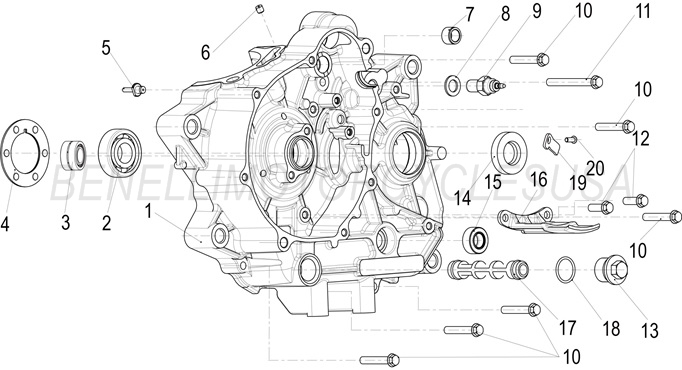

2021 Benelli TNT 135 - Left Crankcase Half Parts Diagram

Click a blue Part # to see its listed TNT135 catalog applications. Click the Description to add or remove the part from your Parts Request.

FIND & SELECT YOUR PARTS

PART #: Click to view TNT135 catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.

NO.	PART #	DESCRIPTION	MSRP	QTY
1	150024320030	LEFT CRANKCASE HALF+ ADD	$168.00	1
2	B12016020315	BEARING 6203+ ADD	$14.00	1
3	B1210H490104	NEEDLE ROLLER BEARING NA4901/C4+ ADD	$11.00	1
4	159124320000	ADJUSTING WASHER+ ADD	$3.50	1
5	159194320000	NOZZLE+ ADD	$6.00	1
6	159174320000	OIL NOZZLE+ ADD	$1.50	1
7	159354320000	BUSHING+ ADD	$2.50	1
8	159346190000	SEALING WASHER M10+ ADD	$1.50	1
9	159234320000	NEUTRAL SENSOR+ ADD	$18.00	1
10	B0107060356H	FLANGE BOLT M6X35+ ADD	$1.50	6
11	B0107060556H	CASE FLANGE BOLT M6X55+ ADD	$1.50	1
12	B0107060146H	FLANGE BOLT M6X14+ ADD	$1.50	2
13	150143300100	OIL FILTER SCREEN CAP 20X1.5X14.5+ ADD	$3.50	1
14	200021070000	OIL SEAL 17X35X7+ ADD	$8.00	1
15	210373090000	OIL SEAL 12X22X9+ ADD	$3.50	1
16	159214320000	LIMITING PLATE+ ADD	$4.00	1
17	150133300000	OIL FILTER SCREEN+ ADD	$11.00	1
18	B190101700A0	O-RING+ ADD	$1.50	1
19	159204320000	SEAL RETAINER PLATE+ ADD	$1.50	1
20	B0200060142H	SCREW M6X14+ ADD	$1.50	1
