Oil Pump
← All 2021 Benelli TNT 135 diagrams

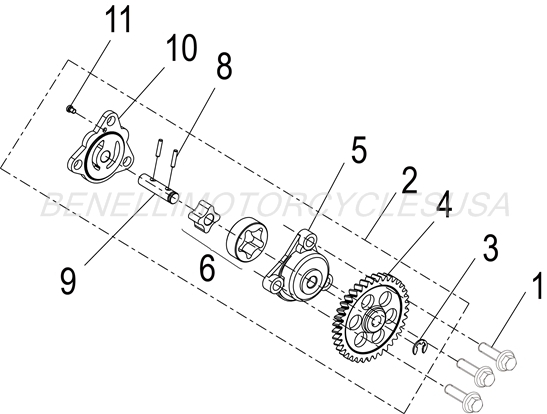

2021 Benelli TNT 135 - Oil Pump Parts Diagram
Click a blue Part # to see its listed TNT135 catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view TNT135 catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | B0107060256H | CASE FLANGE BOLT M6X25+ ADD | $1.50 | 3 |
| 2 | 269014320000 | OIL PUMP ASSY+ ADD | $18.00 | 1 |
| 3 | B08030000600 | CIRCLIP+ ADD | $1.50 | 1 |
| 4 | 260054320000 | OIL PUMP GEAR+ ADD | $8.00 | 1 |
| 5 | 260043090000 | OIL PUMP BODY+ ADD | $18.00 | 1 |
| 6 | 269043090000 | OIL PUMP ROTOR SET+ ADD | $18.00 | 1 |
| 8 | B09012501220 | ROLL PIN 2.5x12+ ADD | $1.50 | 2 |
| 9 | 260063090000 | OIL PUMP SHAFT+ ADD | $7.00 | 1 |
| 10 | 260014320000 | OIL PUMP SEAT+ ADD | $6.00 | 1 |
| 11 | B02000300522 | SCREW M3X5+ ADD | $1.50 | 1 |
Selected Parts (0)
Estimated Total: $0.00
TNT135 CATALOG APPLICATIONS
TNT135 CATALOG APPLICATIONS
Exact part-number matches in the 2018–2023 TNT135 parts catalogs.
