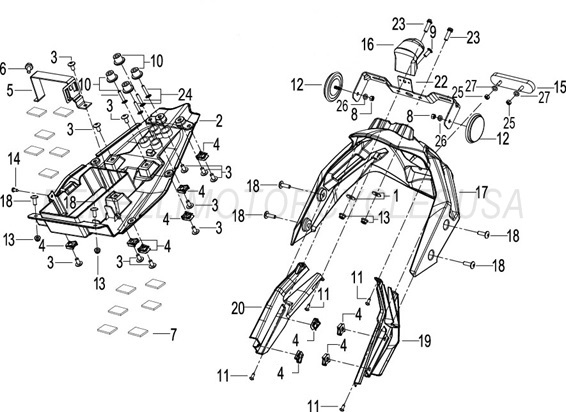

2021 Benelli TNT 135 - Rear Fender Parts Diagram

Click a blue Part # to see its listed TNT135 catalog applications. Click the Description to add or remove the part from your Parts Request.

FIND & SELECT YOUR PARTS

PART #: Click to view TNT135 catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.

NO.	PART #	DESCRIPTION	MSRP	QTY
1	B0702000060H	WASHER M6+ ADD	$1.50	2
2	65731V020000	REAR FENDER UNDERTAIL / BATTERY TRAY+ ADD	$41.00	1
3	B0283060146H	BUTTON HEAD ALLEN BOLT M6X14+ ADD	$1.50	12
4	65803S010010	CLIP NUT M6+ ADD	$1.50	10
5	58820V020000	BATTERY RETAINER+ ADD	$6.00	1
6	B0109060166H	FLANGE BOLT M6X16+ ADD	$1.50	1
7	58752J00000A	BATTERY CUSHION II+ ADD	$4.00	12
8	B0400060005H	NUT M6+ ADD	$1.50	2
9	B0500420160H	CS ST SCREW M4.2X16+ ADD	$1.50	1
10	65711V020100	REAR FENDER SPACER+ ADD	$1.50	4
11	B0507420130H	ST SCREW ST4.2X13+ ADD	$1.50	7
12	86400T180002	SIDE REFLECTOR RED+ ADD	$7.00	2
13	B0417060004H	FLANGE LOCKNUT M6+ ADD	$1.50	4
14	B0507420101H	ST SCREW ST4.2X10+ ADD	$1.50	1
15	86500B470001	REAR REFECTOR+ ADD	$7.00	1
16	82900V020000	LICENSE PLATE LIGHT+ ADD	$8.00	1
17	65761V020003	REAR MUDFLAP FENDER+ ADD	$27.00	1
18	B02830601962	PAN HEAD ALLEN BOLT M6X19+ ADD	$1.50	6
19	65762V020000	LEFT REAR INNER MUDFLAP FENDER TRIM+ ADD	$14.00	1
20	65763V020000	RIGHT REAR INNER MUDFLAP FENDER TRIM+ ADD	$14.00	1
22	08254V020000	LICENSE PLATE BRACKET+ ADD	$7.00	1
23	B02810602062	ALLEN BOLT M6X1X20+ ADD	$1.50	2
24	B0284060300A	BUTTON HEAD ALLEN BOLT M6X30+ ADD	$1.50	4
25	B04000500053	NUT M5+ ADD	$1.50	2
26	B0703000060H	WASHER M6+ ADD	$1.50	2
27	B0703000050H	WASHER M5+ ADD	$1.50	2
