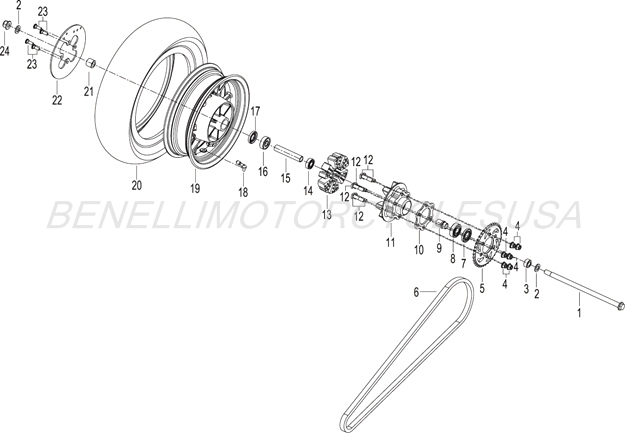

2021 Benelli TNT 135 - Rear Wheel Parts Diagram

Click a blue Part # to see its listed TNT135 catalog applications. Click the Description to add or remove the part from your Parts Request.

FIND & SELECT YOUR PARTS

PART #: Click to view TNT135 catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.

NO.	PART #	DESCRIPTION	MSRP	QTY
1	54004V020100	REAR WHEEL AXLE+ ADD	$29.00	1
2	08021K670100	WASHER 16X32X2+ ADD	$1.50	2
3	54016V020101	LEFT REAR WHEEL SPACER+ ADD	$4.00	1
4	B0417101254H	FLANGE LOCKNUT M10+ ADD	$1.50	6
5	60002V020003	REAR SPROCKET 36T MARK:Z36+ ADD	$24.00	1
6	B1502W1116B8	DRIVE CHAIN 428-116L+ ADD	$59.00	1
7	60200J000001	DUST SEAL 27X47X7+ ADD	$7.00	1
8	B12016020400	BEARING 6204-2RS+ ADD	$18.00	1
9	60006J000001	REAR WHEEL AXLE SLEEVE+ ADD	$18.00	1
10	60014V020000	SPROCKET MOUNTING COLLAR+ ADD	$8.00	1
11	60001N210000	REAR WHEEL DRIVE HUB+ ADD	$42.00	1
12	60015M190000	BOLT M10X1.25X42+ ADD	$2.00	6
13	54024N210000	REAR WHEEL DRIVE HUB DAMPER+ ADD	$4.00	6
14	B12016020200	BEARING 6202-2RS+ ADD	$13.00	1
15	54006V020002	BEARING SPACER+ ADD	$8.00	1
16	B12016030200	BEARING 6302RS+ ADD	$16.00	1
17	44300J040000	DUST SEAL 25X42X7+ ADD	$2.50	1
18	B1403Z201120	VALVE STEM PVR70+ ADD	$8.00	1
19	54101V020201	REAR WHEEL BLACK+ ADD	$150.00	1
19	54101V02U601	REAR WHEEL GREEN U6+ ADD	$150.00	1
20	B140108D1204	REAR TIRE 130/70-12+ ADD	$48.00	1
21	54005V020101	RIGHT REAR WHEEL SPACER+ ADD	$8.00	1
22	55033V020000	REAR BRAKE ROTOR+ ADD	$45.00	1
23	45036K010000	BOLT M8X24+ ADD	$1.50	4
24	B0417141504H	FLANGE LOCKNUT M14X1.5+ ADD	$2.50	1
