Right Crankcase Half
← All 2021 Benelli TNT 135 diagrams

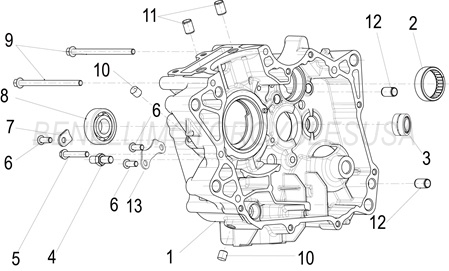

2021 Benelli TNT 135 - Right Crankcase Half Parts Diagram
Click a blue Part # to see its listed TNT135 catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view TNT135 catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | 150034320030 | RIGHT CRANKCASE HALF+ ADD | $161.00 | 1 |
| 2 | 159244320000 | NEEDLE BEARING HK323811+ ADD | $7.00 | 1 |
| 3 | B1210H121201 | NEEDLE ROLLER BEARING NK12/12YG/1+ ADD | $18.00 | 1 |
| 4 | 159154320000 | BOLT PIN+ ADD | $1.50 | 1 |
| 5 | B0107060356H | FLANGE BOLT M6X35+ ADD | $1.50 | 1 |
| 6 | B0200060142H | SCREW M6X14+ ADD | $1.50 | 3 |
| 7 | 150033420000 | BEARING RETAINER PLATE I+ ADD | $1.50 | 1 |
| 8 | B12016020307 | BEARING 6203/P63+ ADD | $14.00 | 1 |
| 9 | B0107060956H | BOLT M6X95+ ADD | $2.00 | 2 |
| 10 | 150035140000 | PLUG+ ADD | $1.50 | 2 |
| 11 | 150083070000 | DOWEL PIN 10X14+ ADD | $1.50 | 2 |
| 12 | 130014050000 | DOWEL PIN+ ADD | $1.50 | 2 |
| 13 | 159364320000 | BEARING RETAINER PLATE II+ ADD | $2.00 | 1 |
