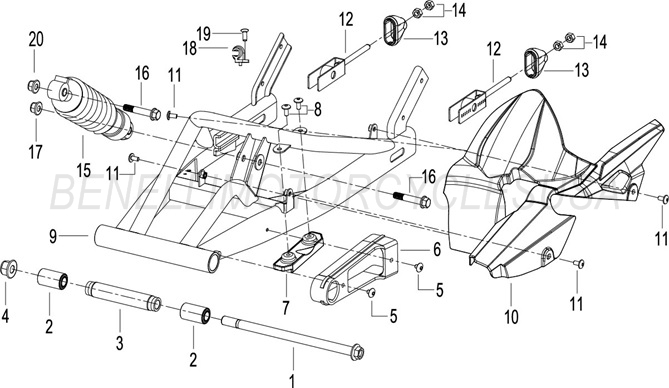

2021 Benelli TNT 135 - Swingarm Parts Diagram

Click a blue Part # to see its listed TNT135 catalog applications. Click the Description to add or remove the part from your Parts Request.

FIND & SELECT YOUR PARTS

PART #: Click to view TNT135 catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.

NO.	PART #	DESCRIPTION	MSRP	QTY
1	53001V020100	SWINGARM AXLE+ ADD	$18.00	1
2	53200J000000	SWINGARM BUSHING+ ADD	$4.00	2
3	53005V020000	SWINGARM BUSHING SPACER+ ADD	$7.00	1
4	B0417141504H	FLANGE LOCKNUT M14X1.5+ ADD	$2.50	1
5	B0283060126K	SCREW M6X12+ ADD	$1.50	2
6	53004V020000	CHAIN SLIDER+ ADD	$8.00	1
7	53018V020000	CHAIN SLIDER PLATE+ ADD	$6.00	1
8	B0283060146H	BUTTON HEAD ALLEN BOLT M6X14+ ADD	$1.50	2
9	53100V020000	SWINGARM+ ADD	$112.00	1
10	60101V020000	REAR FENDER / CHAIN GUARD+ ADD	$13.00	1
11	08018B910100	BUTTON HEAD ALLEN BOLT W/ STEP M6X14+ ADD	$1.50	4
12	53230K980100	CHAIN ADJUSTER+ ADD	$8.00	2
13	53234K980000	BELT ADJUSTER CAP+ ADD	$6.00	2
14	B0400080005H	NUT M8+ ADD	$1.50	4
15	63800V02BC00	REAR SHOCK ABSORBER+ ADD	$150.00	1
16	08012V020100	BOLT M10X50+ ADD	$2.00	2
17	B0417101254H	FLANGE LOCKNUT M10+ ADD	$1.50	1
18	40022N050002	REAR BRAKE HOSE HOLDER+ ADD	$1.50	1
19	B0201060162H	CS SCREW M6X16+ ADD	$1.50	1
20	B04821012552	FLANGE LOCKNUT M10+ ADD	$1.50	1
