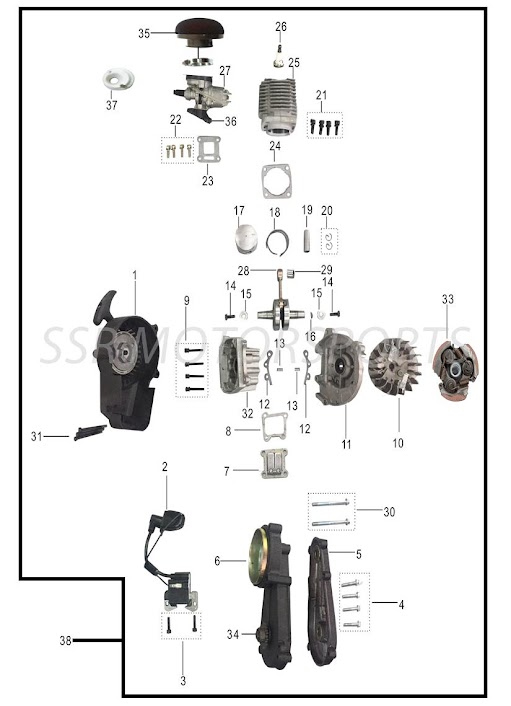

2021 & Newer SSR SX50A (Engine)
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | PRICE |
| 1 | A00960-09-00 | PULL START ASSY | 1 | Assy. | $25.00 | |
| 2 | A00407-08-00 | IGNITION COIL | 1 | Pc. | $21.00 | |
| 3 | A00171-19-03 | ALLEN BOLT | M6X20 | 2 | Pcs. | $1.00 |
| 4 | A00492-19-08 | CASE FLANGE BOLT | M5X25 | 4 | Pcs. | $1.00 |
| 5 | A00418-17-00 | TRANSMISSION BOX COVER W/ BEARINGS | 6000 | 1 | Pc. | $18.00 |
| 6 | A00202-17-00 | TRANSMISSION BOX | 1 | Pc. | $42.00 | |
| 7 | A00295-14-00 | REED CAGE | 1 | Pc. | $13.00 | |
| 8 | A00183-13-00 | REED VALVE GASKET | 1 | Pc. | $2.00 | |
| 9 | A00493-19-02 | ALLEN BOLT W/ LOCK+FLAT WASHER | M5X35 | 4 | Pcs. | $1.00 |
| 10 | A00991-09-00 | FLYWHEEL | 1 | Pc. | $6.00 | |
| 11 | A02998-09-00 | RIGHT CRANKCASE HALF | 1 | Pc. | $23.00 | |
| 12 | A00184-13-00 | CENTER CRANKCASE GASKET | 1 | Pc. | $2.50 | |
| 13 | A00045-25-01 | PIN | 5X10 | 2 | Pcs. | $1.00 |
| 14 | A00453-19-03 | HEX BOLT | M6X16 | 2 | Pcs. | $3.50 |
| 15 | A00092-21-01 | WASHER | 6X18X2 | 2 | Pcs. | $1.00 |
| 16 | A00021-28-01 | WOODRUFF KEY | 1 | Pc. | $2.00 | |
| 17 | A00994-09-00 | PISTON | 1 | Pc. | $25.00 | |
| 18 | A00995-09-00 | PISTON RING SET | 1 | Set | $13.00 | |
| 19 | A03000-09-00 | PISTON PIN | 1 | Pc. | $3.50 | |
| 20 | A03001-09-00 | PISTON PIN CIRCLIP | 2 | Pcs. | $1.00 | |
| 21 | A00174-19-03 | ALLEN BOLT W/ LOCK WASHER | M5X20 | 4 | Pcs. | $1.00 |
| 22 | A00494-19-02 | ALLEN BOLT W/ LOCK+FLAT WASHER | M5X20 | 4 | Pcs. | $1.00 |
| 23 | A00180-13-00 | INTAKE MANIFOLD GASKET | 1 | Pc. | $2.00 | |
| 24 | A00181-13-00 | CYLINDER BASE GASKET | 1 | Pc. | $2.00 | |
| 25 | A00992-09-00 | CYLINDER/HEAD | 1 | Pc. | $42.00 | |
| 26 | BM6A | SPARK PLUG | BM6A | 1 | Pc. | $8.00 |
| 27 | A00253-12-00 | CARBURETOR | 1 | Pc. | $32.00 | |
| 28 | A02483-09-00 | CRANKSHAFT ASSY | 1 | Assy. | $33.00 | |
| 29 | A00180-28-00 | NEEDLE BEARING | 1 | Pc. | $5.00 | |
| 30 | A00429-19-08 | CASE FLANGE BOLT | M6X60 | 2 | Pcs. | $1.50 |
| 31 | A00400-19-X2 | ALLEN BOLT W/ LOCK WASHER | M5X55 | 3 | Pcs. | $1.00 |
| 32 | A02999-09-00 | LEFT CRANKCASE HALF | 1 | Pc. | $23.00 | |
| 33 | A01232-09-00 | CLUTCH ASSY | 1 | Assy. | $25.00 | |
| 34 | A00354-07-00 | COUNTERSHAFT SPROCKET | 11T | 1 | Pc. | $11.00 |
| 35 | A00301-14-00 | AIR FILTER ELEMENT - BUTTON | 42 | 1 | Assy. | $21.00 |
| 36 | A00294-14-00 | INTAKE INSULATOR | 1 | Pc. | $6.00 | |
| 37 | A00210-14-00 | AIR FILTER ADAPTER | 1 | Pc. | $8.00 | |
| 38 | A02496-09-00 | COMPLETE ENGINE ASSY | 1 | Assy. | $99.00 | |
| 39 | A00996-09-00 | CRANKCASE | NOT PICTURED | 1 | Pc. | $32.00 |
| 40 | A00180-13-00 | INTAKE INSULATOR GASKET | NOT PICTURED | 1 | Pc. | $2.00 |
