Camshaft & Valves
All 2021 SSR SR160TR schematics

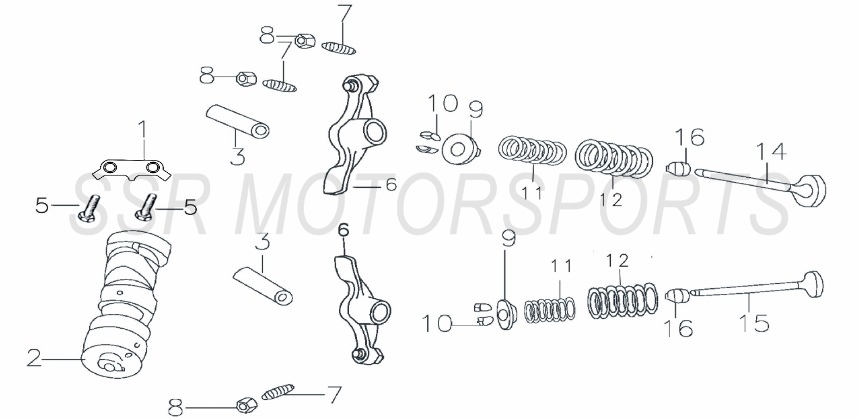

2021 SSR SR160TR - Camshaft & Valves Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A01774-09-00 | ROCKERARM SHAFT RETAINER PLATE+ ADD | $6.10 | 1 |
| 2 | A01775-09-00 | CAMSHAFT+ ADD | $101.50 | 1 |
| 3 | A01776-09-00 | ROCKERARM SHAFT+ ADD | $6.10 | 2 |
| 5 | A00145-19-03 | UPPER VALVE SPRING RETAINER+ ADD | $2.00 | 2 |
| 6 | A01777-09-00 | ROCKER ARM+ ADD | $29.80 | 2 |
| 7 | A01778-09-00 | VALVE ADJUSTING SCREW+ ADD | $2.50 | 2 |
| 8 | A01779-09-00 | LOCKNUT+ ADD | $2.50 | 2 |
| 9 | A01780-09-00 | UPPER VALVE SPRING RETAINER+ ADD | $8.00 | 2 |
| 10 | A01781-09-00 | COLLET+ ADD | $2.50 | 4 |
| 11 | A01782-09-00 | INNER VALVE SPRING+ ADD | $6.10 | 2 |
| 12 | A01783-09-00 | OUTER VALVE SPRING+ ADD | $6.10 | 2 |
| 14 | A01784-09-00 | INTAKE VALVE+ ADD | $19.30 | 1 |
| 15 | A01785-09-00 | EXHAUST VALVE+ ADD | $19.30 | 1 |
| 16 | A01786-09-00 | VALVE GUIDE SEAL+ ADD | $4.40 | 2 |
