Cam Chain Tensioner
← All 2022 Benelli TNT 135 diagrams

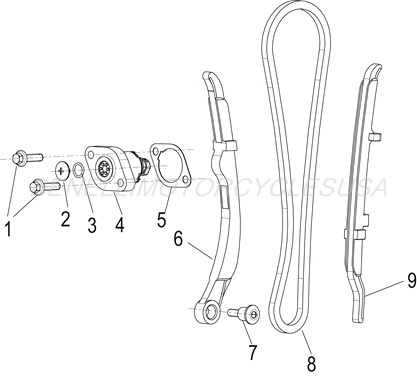

2022 Benelli TNT 135 - Cam Chain Tensioner Parts Diagram
Click a blue Part # to see its listed TNT135 catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view TNT135 catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | B0107060226H | CASE FLANGE BOLT M6X22+ ADD | $1.50 | 2 |
| 2 | 14005305001X | TENSIONER BOLT M6X6+ ADD | $1.50 | 1 |
| 3 | 210043050000 | O-RING 9.5X1.5+ ADD | $1.50 | 1 |
| 4 | 149033140010 | CAM CHAIN TENSIONER ASSY+ ADD | $21.00 | 1 |
| 5 | 140013050040 | CAM CHAIN TENSIONER GASKET+ ADD | $1.50 | 1 |
| 6 | 149014320010 | REAR CAM CHAIN GUIDE+ ADD | $10.00 | 1 |
| 7 | 140064320000 | PIVOT BOLT+ ADD | $2.00 | 1 |
| 8 | 140023140010 | CAM CHAIN+ ADD | $29.00 | 1 |
| 9 | 149024320010 | FRONT CAM CHAIN GUIDE+ ADD | $8.00 | 1 |
Selected Parts (0)
Estimated Total: $0.00
TNT135 CATALOG APPLICATIONS
TNT135 CATALOG APPLICATIONS
Exact part-number matches in the 2018–2023 TNT135 parts catalogs.
