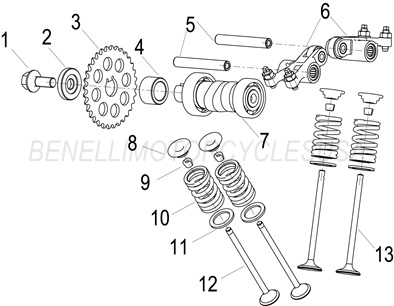

2022 Benelli TNT 135 - Camshaft & Valves Parts Diagram
Click a blue Part # to see its listed TNT135 catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view TNT135 catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | B0107080206H | BOLT M8X20+ ADD | $1.50 | 1 |
| 2 | 120014300000 | WASHER+ ADD | $1.50 | 1 |
| 3 | 129034320010 | CAMSHAFT SPROCKET+ ADD | $14.00 | 1 |
| 4 | 120024320000 | CAMSHAFT BUSHING+ ADD | $8.00 | 1 |
| 5 | 129164320000 | ROCKERARM SHAFT+ ADD | $7.00 | 2 |
| 6 | 129314300000 | ROCKERARM ASSY+ ADD | $30.00 | 2 |
| 7 | 129094320000 | CAMSHAFT ASSY+ ADD | $48.00 | 1 |
| 8 | 129204300000 | UPPER VALVE SPRING RETAINER+ ADD | $4.00 | 4 |
| 9 | 129225090000 | VALVE COLLET+ ADD | $2.50 | 8 |
| 10 | 129254300000 | VALVE SPRING+ ADD | $6.00 | 4 |
| 11 | 129214300000 | VALVE SPRING SEAT+ ADD | $2.50 | 4 |
| 12 | 129194300000 | EXHAUST VALVE+ ADD | $18.00 | 2 |
| 13 | 129184300000 | INTAKE VALVE+ ADD | $13.00 | 2 |
