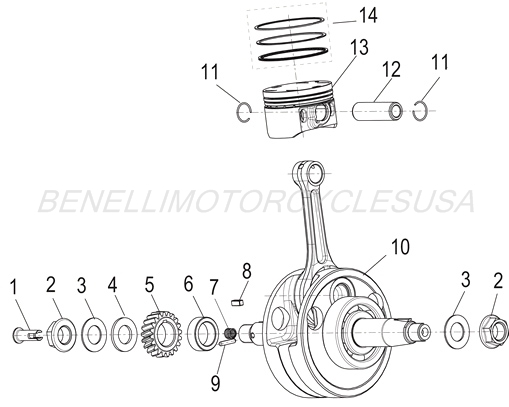

2022 Benelli TNT 135 - Crankshaft & Piston Assembly Parts Diagram
Click a blue Part # to see its listed TNT135 catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view TNT135 catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | 170054320000 | OIL NOZZLE+ ADD | $2.50 | 1 |
| 2 | 170044320000 | FLANGE NUT M14X1+ ADD | $2.50 | 2 |
| 3 | 170024320000 | CONICAL WASHER+ ADD | $1.50 | 2 |
| 4 | 170034320000 | WASHER+ ADD | $1.50 | 1 |
| 5 | 170074320000 | CLUTCH DRIVEN GEAR+ ADD | $8.00 | 1 |
| 6 | 170014320000 | BUSHING+ ADD | $2.50 | 1 |
| 7 | 170064320000 | SPRING+ ADD | $1.50 | 1 |
| 8 | B11130404009 | WOODRUFF KEY+ ADD | $1.50 | 1 |
| 9 | B090103016B0 | PIN 3X16+ ADD | $1.50 | 1 |
| 10 | 179014320010 | CRANKSHAFT ASSY+ ADD | $125.00 | 1 |
| 11 | 179153090000 | PISTON PIN CIRCLIP+ ADD | $1.50 | 2 |
| 12 | 179143090002 | PISTON PIN+ ADD | $7.00 | 1 |
| 13 | 179134320000 | PISTON+ ADD | $18.00 | 1 |
| 14 | 170084320000 | PISTON RING SET+ ADD | $23.00 | 1 |
