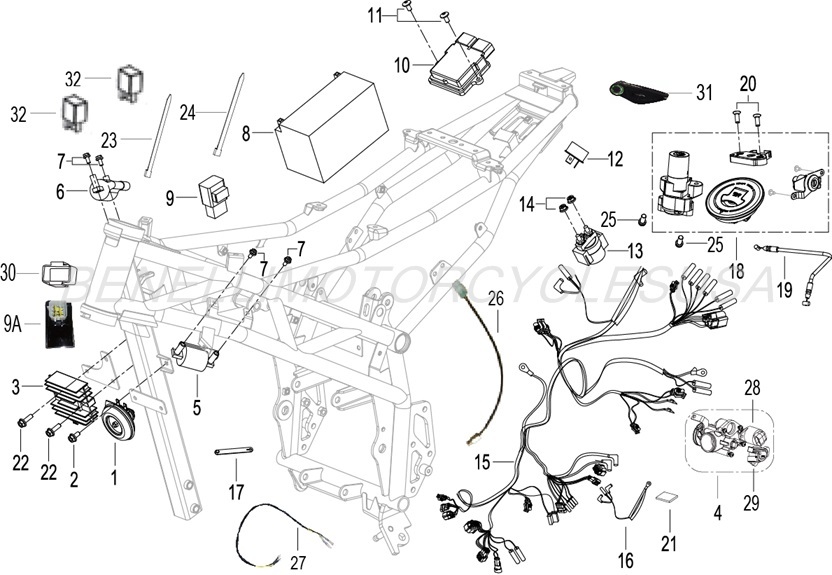

2022 Benelli TNT 135 - Electrical Equipment Parts Diagram

Click a blue Part # to see its listed TNT135 catalog applications. Click the Description to add or remove the part from your Parts Request.

FIND & SELECT YOUR PARTS

PART #: Click to view TNT135 catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.

NO.	PART #	DESCRIPTION	MSRP	QTY
1	95100T490000	HORN+ ADD	$13.00	1
2	B0109060126H	FLANGE BOLT M6X12+ ADD	$1.50	1
3	299064010000	REGULATOR / RECTIFIER+ ADD	$41.00	1
4	289004320030	THROTTLE BODY ASSY+ ADD	$150.00	1
5	96200V020002	IGNITION COIL W/ WIRE+CAP+ ADD	$33.00	1
6	96200V020003	IGNITION COIL W/ WIRE+CAP+ ADD	$33.00	1
7	B0109050106H	BOLT M5×10+ ADD	$1.50	4
8	96100J280000	BATTERY YTX7A-BS+ ADD	$124.00	1
9A	96400H390001	TURN SIGNAL RELAY+ ADD	$48.00	1
10	96C00V020004	ECU+ ADD	$291.00	1
11	B0283060146H	BUTTON HEAD ALLEN BOLT M6X14+ ADD	$1.50	2
12	96700K060000	STARTING DIODE+ ADD	$8.00	1
13	94100V020000	STARTER RELAY+ ADD	$24.00	1
14	B0400060005H	NUT M6+ ADD	$1.50	2
15	92000V02000B	WIRE HARNESS ASSY+ ADD	$275.00	1
16	92500V020000	GROUND HARNESS+ ADD	$11.00	1
17	96003P250000	RUBBER CABLE CLAMP+ ADD	$2.50	1
18	88000V020002	COMPLETE LOCK SET+ ADD	$77.00	1
19	58900V020000	SEAT LOCK CABLE+ ADD	$7.00	1
20	B0201060252H	SCREW M6X25+ ADD	$1.50	2
21	58752J00000A	BATTERY CUSHION II+ ADD	$4.00	1
22	B0109060256H	ALLEN BOLT M6X25+ ADD	$1.50	2
23	40098B450000	ZIP-TIE 3X150+ ADD	$1.50	5
24	96001J000000	ZIP TIE 150MM+ ADD	$1.50	5
25	B0207060162H	BOLT M6X16+ ADD	$1.50	2
26	280013320000	CYLINDER TEMPERATURE SENSOR+ ADD	$33.00	1
27	84602V020000	TAILLIGHT HARNESS+ ADD	$7.00	1
28	280024320000	STEPPER MOTOR+ ADD	$69.00	1
29	280756030001	THROTTLE POSITION SENSOR+ ADD	$42.00	1
30	96007B720001	TURN SIGNAL RELAY HOLDER+ ADD	$3.50	1
31	88900P13090X	KEY BLANK-LOCAL LOCKSMITH REQUIRED+ ADD	$13.00	1
32	94100J800000	RELAY+ ADD	$18.00	2
