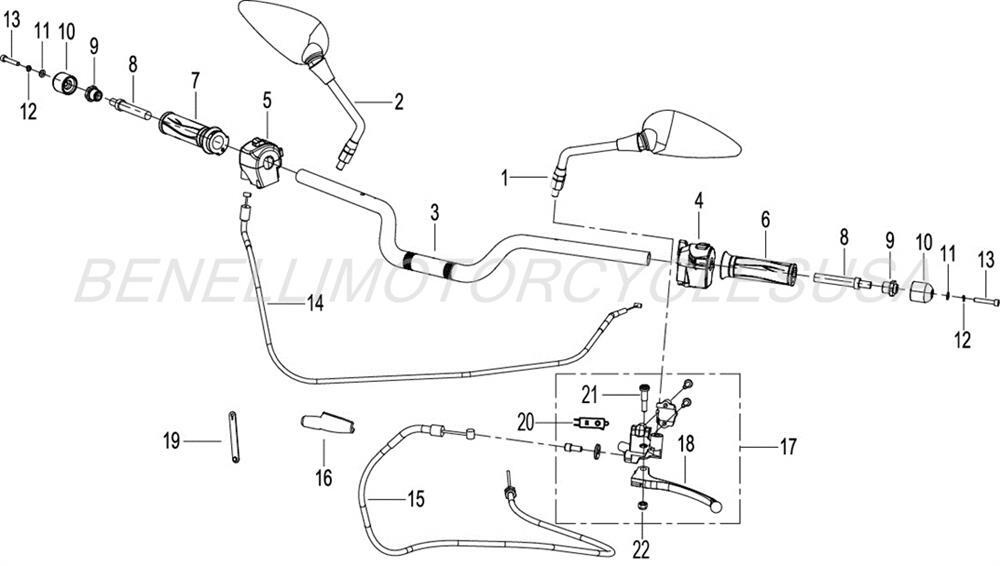

2022 Benelli TNT 135 - Handlebars Parts Diagram

Click a blue Part # to see its listed TNT135 catalog applications. Click the Description to add or remove the part from your Parts Request.

FIND & SELECT YOUR PARTS

PART #: Click to view TNT135 catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.

NO.	PART #	DESCRIPTION	MSRP	QTY
1	40460P250100	LEFT MIRROR+ ADD	$24.00	1
2	40470P250100	RIGHT MIRROR+ ADD	$24.00	1
3	40101V020000	HANDLEBAR+ ADD	$59.00	1
4	40500M140001	LEFT HANDLEBAR SWITCH ASSY+ ADD	$33.00	1
5	40600M140000	RIGHT HANDLEBAR SWITCH ASSY+ ADD	$33.00	1
6	40001K740000	LEFT HANDLEBAR GRIP+ ADD	$8.00	1
7	40210K740000	RIGHT HANDLEBAR GRIP W/ TUBE+ ADD	$8.00	1
8	40031S010000	HANDLEBAR END INSERT+ ADD	$8.00	2
9	40032P250000	VIBRATION DAMPER+ ADD	$8.00	2
10	40031P250000	HANDLEBAR END+ ADD	$11.00	2
11	B0703000060H	WASHER M6+ ADD	$1.50	2
12	B0700000060H	LOCK WASHER M6+ ADD	$1.50	2
13	B0205060356H	ALLEN BOLT M6X35+ ADD	$1.50	2
14	40300V020000	THROTTLE CABLE+ ADD	$11.00	1
15	40400V020000	CLUTCH CABLE+ ADD	$14.00	1
16	40017J130000	CLUTCH CABLE RUBBER COVER+ ADD	$2.00	1
17	40080J020001	CLUTCH PERCH ASSY+ ADD	$21.00	1
18	40084J020100	CLUTCH LEVER+ ADD	$18.00	1
19	49371T620000	RUBBER CABLE CLAMP+ ADD	$3.50	3
20	91800J040006	CLUTCH LOCKOUT SWITCH+ ADD	$10.00	1
21	40083B290000	CLUTCH LEVER PIVOT BOLT+ ADD	$1.50	1
22	B04160500065	NUT M5+ ADD	$1.50	1
