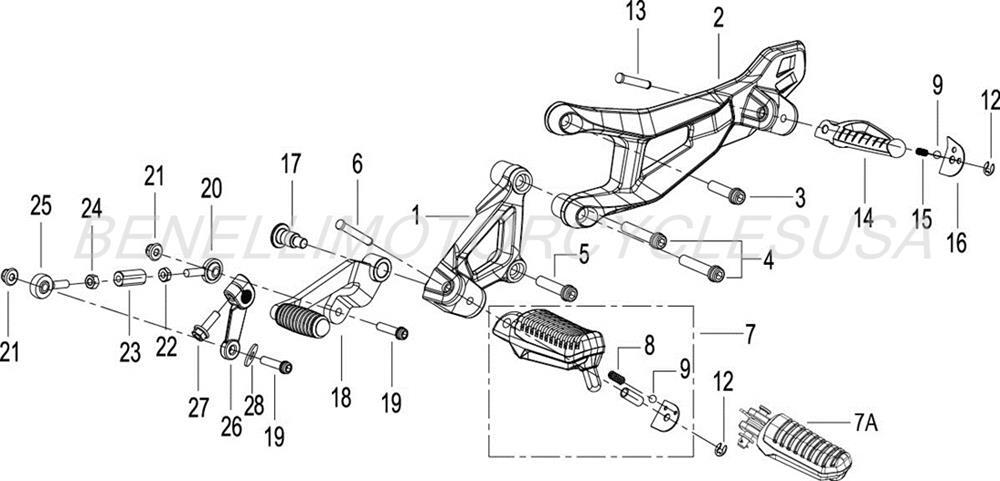

2022 Benelli TNT 135 - Left Footrest Assembly Parts Diagram

Click a blue Part # to see its listed TNT135 catalog applications. Click the Description to add or remove the part from your Parts Request.

FIND & SELECT YOUR PARTS

PART #: Click to view TNT135 catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.

NO.	PART #	DESCRIPTION	MSRP	QTY
1	58226V020100	LEFT FRONT FOOTREST BRACKET BLACK+ ADD	$48.00	1
2	58266V020100	LEFT PASSENGER FOOTREST BRACKET BLACK+ ADD	$69.00	1
3	B02810803062	BOLT M8X30+ ADD	$1.50	1
4	B02810804062	BOLT M8X40+ ADD	$2.00	2
5	B02810803562	ALLEN BOLT M8X1.25X35+ ADD	$1.50	1
6	58217P260000	FOOTREST PIVOT PIN+ ADD	$2.50	1
7A	58220V30011Z	LEFT FRONT FOOTREST ASSY BLACK+ ADD	$36.00	1
8	58222J040001	PEDAL SPRING+ ADD	$4.00	1
9	B06000002000	STOPPER BALL+ ADD	$2.50	2
12	B0882000050A	CIRCLIP 5+ ADD	$1.50	2
13	58217S010001	PASSENGER FOOTREST PIVOT PIN+ ADD	$2.50	1
14	58266P910010	LEFT PASSENGER FOOTREST+ ADD	$35.00	1
15	58222B930000	PEDAL STOPPER SPRING+ ADD	$2.50	1
16	58451S010000	PASSENGER FOOTREST STOPPER PLATE+ ADD	$4.00	1
17	08011V020000	SPECIAL BOLT+ ADD	$2.00	1
18	08370V020100	SHIFTER LEVER+ ADD	$13.00	1
19	B0281060306K	ALLEN BOLT M6X30+ ADD	$1.50	2
20	08376V020000	HEIM JOINT LH THREAD M6+ ADD	$11.00	1
21	B0417060004H	FLANGE LOCKNUT M6+ ADD	$1.50	2
22	08051S040010	NUT M6-LH+ ADD	$1.50	1
23	08371V020000	SHIFTER ROD+ ADD	$10.00	1
24	B04800600052	NUT M6-8-ZG+ ADD	$1.50	1
25	08375V020000	HEIM JOINT RH THREAD+ ADD	$11.00	1
26	08386P100000	SHIFTER KNUCKLE+ ADD	$13.00	1
27	B0109060206H	FLANGE BOLT M6X20+ ADD	$1.50	1
28	B0702000060H	WASHER M6+ ADD	$1.50	1
