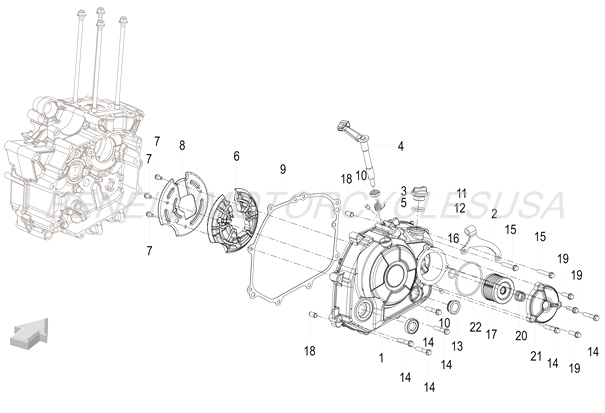

2022 Benelli TNT 135 - Right Engine Cover Parts Diagram

Click a blue Part # to see its listed TNT135 catalog applications. Click the Description to add or remove the part from your Parts Request.

FIND & SELECT YOUR PARTS

PART #: Click to view TNT135 catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.

NO.	PART #	DESCRIPTION	MSRP	QTY
1	169104320050	CLUTCH COVER RIGHT+ ADD	$114.00	1
2	169144320000	CLUTCH CABLE HOLDER+ ADD	$4.00	1
3	200001050000	OIL SEAL 12X18X5+ ADD	$4.00	1
4	209043070000	CLUTCH ACTUATOR+ ADD	$11.00	1
5	200034050000	CLUTCH ACTUATOR ROD SPRING+ ADD	$3.50	1
6	169164320010	RIGHT ENGINE COVER RUBBER DAMPER+ ADD	$21.00	1
7	B0182050106H	BOLT M5X10+ ADD	$1.50	3
8	16917432001X	RIGHT ENGINE COVER PRESSURE PLATE+ ADD	$3.50	1
9	169114320000	CLUTCH COVER GASKET+ ADD	$8.00	1
10	150103070000	PLUG+ ADD	$2.50	2
11	160063090070	OIL FILLER CAP+ ADD	$6.00	1
12	160063070000	O-RING 18X3.5+ ADD	$1.50	1
13	160083090000	OIL LEVEL WINDOW+ ADD	$7.00	1
14	B0107060326H	FLANGE BOLT M6X32+ ADD	$1.50	6
15	B0107060356H	FLANGE BOLT M6X35+ ADD	$1.50	2
16	160085040000	O-RING+ ADD	$1.50	1
17	169124320000	OIL FILTER+ ADD	$14.00	1
18	160073070000	DOWEL PIN 6.7X8X14+ ADD	$1.50	2
19	B0107060206H	FLANGE BOLT M6X20+ ADD	$1.50	3
20	160033090000	SPRING+ ADD	$1.50	1
21	169134320020	OIL FILTER COVER+ ADD	$18.00	1
22	169154320000	O-RING 58X2.5+ ADD	$2.50	1
