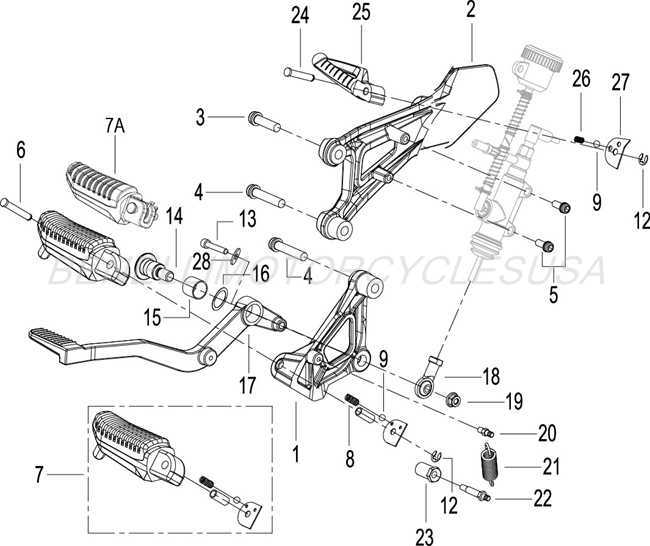

2022 Benelli TNT 135 - Right Footrest Assembly Parts Diagram

Click a blue Part # to see its listed TNT135 catalog applications. Click the Description to add or remove the part from your Parts Request.

FIND & SELECT YOUR PARTS

PART #: Click to view TNT135 catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.

NO.	PART #	DESCRIPTION	MSRP	QTY
1	58246V020100	RIGHT FRONT FOOTREST BRACKET BLACK+ ADD	$48.00	1
2	58286V020100	RIGHT PASSENGER FOOTREST BRACKET BLACK+ ADD	$69.00	1
3	B02810803062	BOLT M8X30+ ADD	$1.50	1
4	B02810804062	BOLT M8X40+ ADD	$2.00	2
5	B0109060206H	FLANGE BOLT M6X20+ ADD	$1.50	2
6	58217P260000	FOOTREST PIVOT PIN+ ADD	$2.50	1
7A	58240V30011Z	RIGHT FRONT FOOTREST ASSY BLACK+ ADD	$36.00	1
8	58222J040001	PEDAL SPRING+ ADD	$4.00	1
9	B06000002000	STOPPER BALL+ ADD	$2.50	2
12	B0882000050A	CIRCLIP 5+ ADD	$1.50	2
13	B0205060356H	ALLEN BOLT M6X35+ ADD	$1.50	1
14	40706P250001	BRAKE PEDAL PIVOT BOLT+ ADD	$8.00	1
15	58511S010000	BRASS BUSHING+ ADD	$8.00	1
16	58216S010000	WASHER+ ADD	$1.50	1
17	40712V020000	REAR BRAKE PEDAL+ ADD	$45.00	1
18	40283S010000	REAR BRAKE MASTER CYLINDER HEIM JOINT M6+ ADD	$18.00	1
19	B0417060004H	FLANGE LOCKNUT M6+ ADD	$1.50	1
20	40273P250000	UPPER SPRING PIN+ ADD	$1.50	1
21	40702P100002	REAR BRAKE PEDAL RETURN SPRING+ ADD	$4.00	1
22	40717P250001	LOWER SPRING PIN+ ADD	$2.00	1
23	40705P250000	REAR BRAKE PEDAL STOP+ ADD	$4.00	1
24	58217S010001	PASSENGER FOOTREST PIVOT PIN+ ADD	$2.50	1
25	58286P910010	RIGHT PASSENGER FOOTREST+ ADD	$35.00	1
26	58222B930000	PEDAL STOPPER SPRING+ ADD	$2.50	1
27	58451S010000	PASSENGER FOOTREST STOPPER PLATE+ ADD	$4.00	1
28	B0702000060H	WASHER M6+ ADD	$1.50	1
