Seat & Tail Cowling
← All 2022 Benelli TNT 135 diagrams

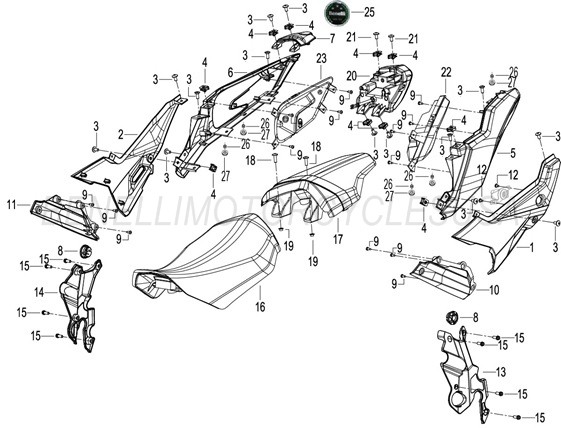

2022 Benelli TNT 135 - Seat & Tail Cowling Parts Diagram
Click a blue Part # to see its listed TNT135 catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view TNT135 catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | 65601V02003Z | LEFT SIDE COVER W/ STICKER (B2)+ ADD | $27.00 | 1 |
| 1 | 65601V02004Z | LEFT SIDE COVER W/ STICKER (F9)+ ADD | $27.00 | 1 |
| 1 | 65601V02007Z | LEFT SIDE COVER W/ STICKER (WF)+ ADD | $27.00 | 1 |
| 1 | 65601V02006Z | LEFT SIDE COVER W/ STICKER (U6)+ ADD | $27.00 | 1 |
| 2 | 65602V02003Z | RIGHT SIDE COVER W/ STICKER (B2)+ ADD | $27.00 | 1 |
| 2 | 65602V02004Z | RIGHT SIDE COVER W/ STICKER (F9)+ ADD | $27.00 | 1 |
| 2 | 65602V02007Z | RIGHT SIDE COVER W/ STICKER (WF)+ ADD | $27.00 | 1 |
| 2 | 65602V02006Z | RIGHT SIDE COVER W/ STICKER (U6)+ ADD | $27.00 | 1 |
| 3 | B0283060146H | BUTTON HEAD ALLEN BOLT M6X14+ ADD | $1.50 | 14 |
| 4 | 65803S010010 | CLIP NUT M6+ ADD | $1.50 | 10 |
| 5 | 65901V02011Z | LEFT REAR TAIL COWLING W/ STICKER (WF, F9, B2)+ ADD | $30.00 | 1 |
| 5 | 65901V02012Z | LEFT REAR TAIL COWLING W/ STICKER (U6)+ ADD | $33.00 | 1 |
| 6 | 65902V02011Z | RIGHT REAR TAIL COWLING W/ STICKER (WF, F9, B2)+ ADD | $30.00 | 1 |
| 6 | 65902V02012Z | RIGHT REAR TAIL COWLING W/ STICKER (U6)+ ADD | $33.00 | 1 |
| 7 | 65907V02BA00 | CENTER TAIL COVER BLACK BA+ ADD | $14.00 | 1 |
| 8 | 65532V02C800 | FRAME PLUG SILVER C8+ ADD | $3.50 | 2 |
| 9 | B0507420130H | ST SCREW ST4.2X13+ ADD | $1.50 | 14 |
| 10 | 65621V020000 | LEFT SIDE COVER FRONT TRIM+ ADD | $6.00 | 1 |
| 11 | 65622V020000 | RIGHT SIDE COVER FRONT TRIM+ ADD | $6.00 | 1 |
| 12 | B0507420101H | ST SCREW ST4.2X10+ ADD | $1.50 | 2 |
| 13 | 58211V020000 | LEFT FRAME COVER+ ADD | $7.00 | 1 |
| 14 | 58311V020000 | RIGHT FRAME COVER+ ADD | $7.00 | 1 |
| 15 | B0281060146K | BOLT M6×14+ ADD | $1.50 | 8 |
| 16 | 51100V020030 | SEAT ASSY+ ADD | $59.00 | 1 |
| 17 | 51200V020030 | PASSENGER SEAT ASSY+ ADD | $39.00 | 1 |
| 18 | B02830601962 | PAN HEAD ALLEN BOLT M6X19+ ADD | $1.50 | 2 |
| 19 | 47128B450000 | COLLAR+ ADD | $1.50 | 2 |
| 20 | 82000V020000 | TAILLIGHT ASSY LED+ ADD | $69.00 | 1 |
| 21 | B0283060126K | SCREW M6X12+ ADD | $1.50 | 2 |
| 22 | 81500V020000 | REAR LEFT TURN SIGNAL LED+ ADD | $66.00 | 1 |
| 23 | 81700V020000 | REAR RIGHT TURN SIGNAL LED+ ADD | $66.00 | 1 |
| 25 | 05502V020000 | REAR BENELLI LABEL+ ADD | $4.00 | 1 |
| 26 | 08061K670100 | COLLAR+ ADD | $1.50 | 5 |
| 27 | 47028G220000 | RUBBER GROMMET+ ADD | $1.50 | 5 |
Selected Parts (0)
Estimated Total: $0.00
TNT135 CATALOG APPLICATIONS
TNT135 CATALOG APPLICATIONS
Exact part-number matches in the 2018–2023 TNT135 parts catalogs.
