Carburetor
All 2022 SSR SR110DX schematics

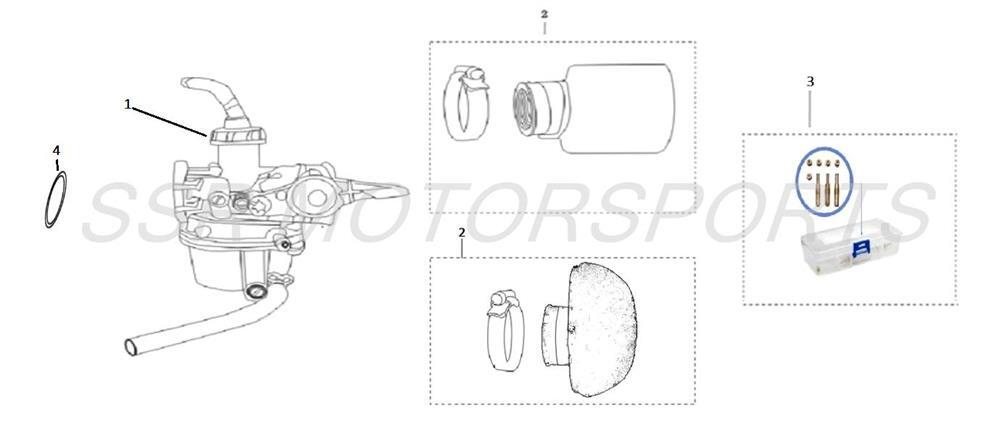

2022 SSR SR110DX - Carburetor Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00328-12-00 | CARBURETOR JK 19 KS W/ O-RING+ ADD | $79.00 | 1 |
| 2 | A00237-14-00 | AIR FILTER ELEMENT 35+ ADD | $19.30 | 1 |
| 2 | A00302-14-00 | AIR FILTER ELEMENT - BUTTON MULTI+ ADD | $26.30 | 1 |
| 3 | A00051-01-00 | CARBURETOR JET KIT AVAILABLE ACCESSORY+ ADD | $38.50 | 1 |
| 4 | A00150-27-00 | O-RING+ ADD | $2.60 | 1 |
| 5 | A00416-12-00 | FLOAT BOWL O-RING JK-PZ19+ ADD | $2.60 | 1 |
