Carburetor & Air Filter

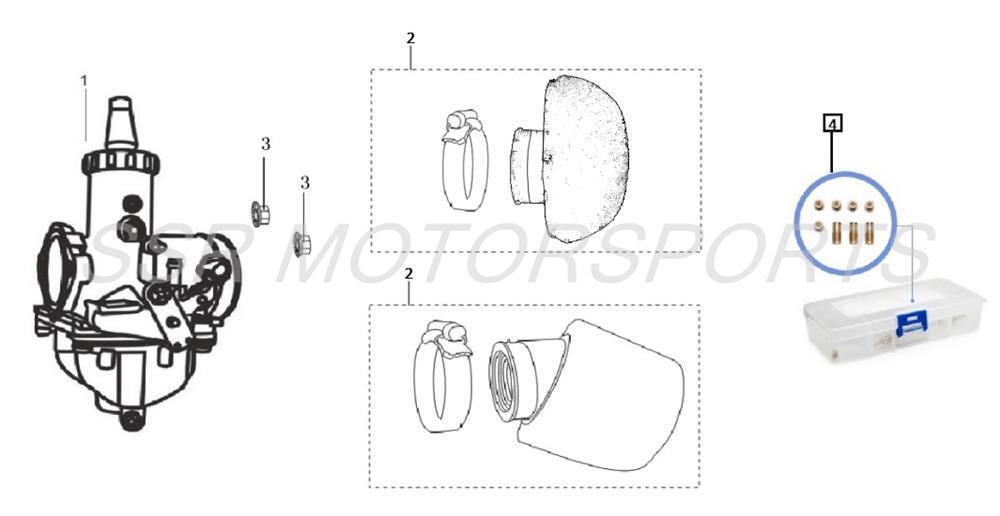

2022 SSR SR125 - Carburetor & Air Filter Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00352-12-00 | CARBURETOR ASSY PD26+ ADD | $79.00 | 1 |
| 1-1 | A00154-27-00 | O-RING 29.2X2.5+ ADD | $2.00 | 1 |
| 1-2 | A00417-12-00 | FLOAT BOWL O-RING JK-PZ26+ ADD | $2.60 | 1 |
| 1-1 | A00155-27-00 | O-RING 28.5X3+ ADD | $2.00 | 1 |
| 2 | A00225-14-00 | AIR FILTER ELEMENT 38+ ADD | $24.50 | 1 |
| 2 | A00300-14-00 | AIR FILTER ELEMENT - BUTTON 38MM+ ADD | $26.30 | 1 |
| 3 | A00093-22-03 | FLANGE NUT M6 (SILVER -OR- BLACK)+ ADD | $2.00 | 2 |
| 4 | A00052-01-00 | CARBURETOR JET KIT AVAILABLE ACCESSORY+ ADD | $38.50 | 1 |
