Clutch

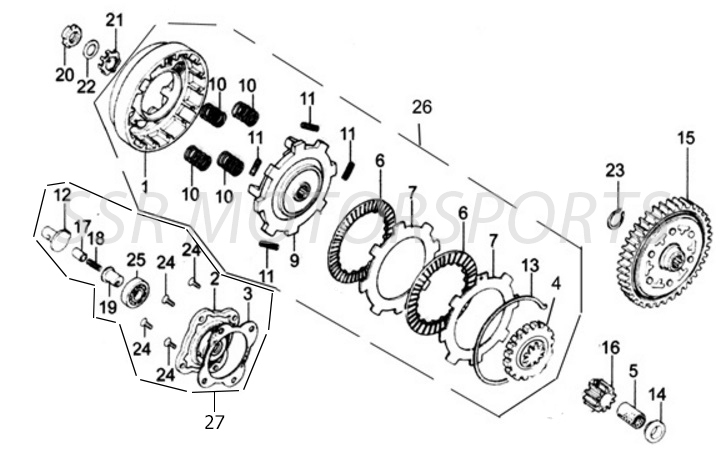

2022 SSR SR125 - Clutch Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A01317-09-01 | CLUTCH HUB+ ADD | $49.00 | 1 |
| 2 | A01318-09-00 | CLUTCH LIFTER PLATE+ ADD | $19.30 | 1 |
| 3 | A00121-13-00 | CLUTCH LIFTER PLATE GASKET+ ADD | $8.80 | 1 |
| 4 | A01319-09-00 | CLUTCH DRIVE OUTER GEAR+ ADD | $24.50 | 1 |
| 5 | A01271-09-00 | PRIMARY DRIVE GEAR BUSHING+ ADD | $6.10 | 1 |
| 6 | A01272-09-00 | CLUTCH FRICTION PLATE+ ADD | $15.80 | 3 |
| 7 | A01273-09-00 | CLUTCH STEEL PLATE+ ADD | $12.30 | 3 |
| 9 | A01275-09-00 | CLUTCH HOLDER+ ADD | $31.50 | 1 |
| 10 | A01276-09-00 | CLUTCH SPRING+ ADD | $2.50 | 4 |
| 11 | A01277-09-00 | SPRING+ ADD | $2.00 | 4 |
| 12 | A01278-09-00 | CLUTCH PUSH ROD+ ADD | $6.10 | 1 |
| 13 | A02380-09-00 | CLUTCH SNAP RING+ ADD | $6.10 | 1 |
| 14 | A01327-09-00 | CLUTCH WASHER+ ADD | $3.50 | 1 |
| 15 | A01301-09-00 | GEAR 67T+ ADD | $24.50 | 1 |
| 16 | A01302-09-00 | GEAR 18T+ ADD | $19.30 | 1 |
| 17 | A01279-09-00 | COLLAR+ ADD | $2.00 | 1 |
| 18 | A01280-09-00 | SPRING+ ADD | $2.00 | 1 |
| 19 | A01281-09-00 | BUSHING+ ADD | $2.50 | 1 |
| 20 | A01282-09-00 | SPLINED LOCKNUT M14X1+ ADD | $2.60 | 1 |
| 21 | A01283-09-00 | TONGUE WASHER M14+ ADD | $2.60 | 1 |
| 22 | A01284-09-00 | DISHED WASHER+ ADD | $2.00 | 1 |
| 23 | A01285-09-00 | CIRCLIP+ ADD | $2.00 | 1 |
| 24 | A00020-20-05 | CS SCREW M5X10+ ADD | $2.00 | 4 |
| 25 | A00009-28-00 | BEARING 6000+ ADD | $8.80 | 1 |
| 26 | A02714-09-00 | CLUTCH ASSY+ ADD | $117.30 | 1 |
| 27 | A03016-09-00 | CLUTCH LIFTER PLATE ASSY+ ADD | $35.00 | 1 |
