Cylinder Head

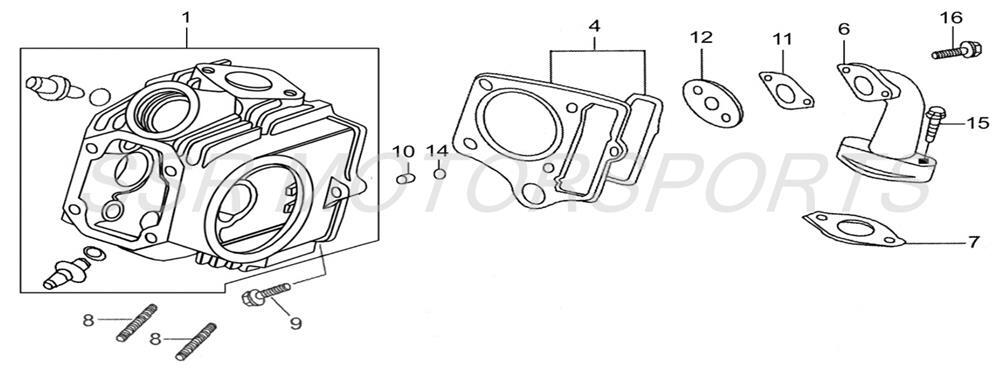

2022 SSR SR125 - Cylinder Head Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A01180-09-00 | CYLINDER HEAD ASSY W/ VALVES+ ADD | $154.00 | 1 |
| 4 | A00288-13-00 | CYLINDER HEAD GASKET+ ADD | $12.30 | 1 |
| 6 | A00293-14-00 | INTAKE MANIFOLD YX-02+ ADD | $42.00 | 1 |
| 7 | A00292-14-00 | INTAKE MANIFOLD GASKET+ ADD | $4.40 | 1 |
| 8 | A00001-19-04 | STUD M6X32+ ADD | $2.00 | 2 |
| 9 | A00002-19-03 | BOLT M6X23 - HEX / PHILLIPS+ ADD | $2.00 | 2 |
| 10 | A00118-23-00 | SPECIAL PIN 8X11+ ADD | $2.60 | 1 |
| 11 | A00274-13-00 | CARBURETOR GASKET+ ADD | $4.40 | 1 |
| 12 | A00272-13-00 | INTAKE INSULATOR M4.7+ ADD | $6.10 | 1 |
| 14 | A00042-27-00 | O-RING 9X1.6+ ADD | $2.00 | 1 |
| 15 | A00422-19-08 | CASE FLANGE BOLT M6X28+ ADD | $2.00 | 2 |
| 16 | A00024-19-01 | FLANGE BOLT M6X22+ ADD | $2.00 | 2 |
