Muffler

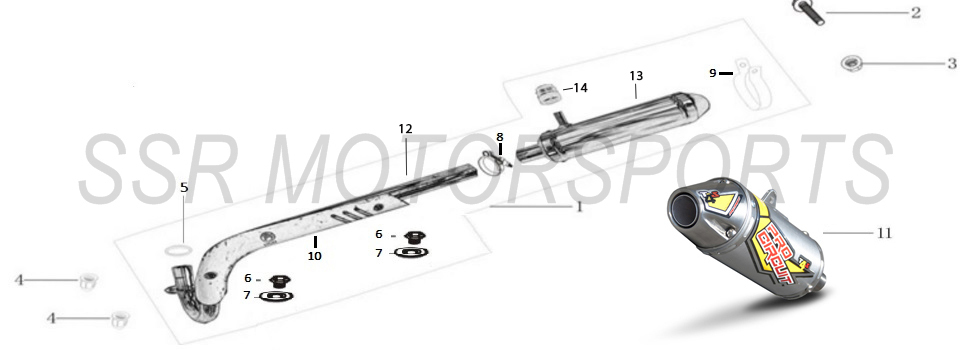

2022 SSR SR125 - Muffler Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00076-10-00 | MUFFLER ASSY CHROME+ ADD | $127.80 | 1 |
| 2 | A00049-19-01 | FLANGE BOLT M8X35+ ADD | $2.50 | 1 |
| 3 | A00100-22-34 | FLANGE LOCKNUT M8+ ADD | $2.00 | 1 |
| 4 | A00093-22-03 | FLANGE NUT M6 (SILVER -OR- BLACK)+ ADD | $2.00 | 2 |
| 5 | A00115-13-00 | EXHAUST GASKET+ ADD | $6.10 | 1 |
| 6 | A00090-20-01 | MED PANHEAD ALLEN BOLT M6X8+ ADD | $2.00 | 2 |
| 7 | A00002-21-02 | LOCK WASHER M6+ ADD | $2.00 | 2 |
| 8 | A00202-10-00 | CLAMP+ ADD | $6.10 | 1 |
| 9 | A00203-10-00 | MUFFLER CLAMP+ ADD | $19.30 | 1 |
| 10 | A00101-10-00 | MUFFLER GUARD+ ADD | $19.30 | 1 |
| 11 | A00083-01-00 | PRO CIRCUIT T-4/S SILENCER PRO CIRCUIT T4S (OPT)+ ADD | $299.00 | 1 |
| 12 | A00116-10-00 | MUFFLER HEAD PIPE ONLY+ ADD | $57.80 | 1 |
| 13 | A00117-10-00 | MUFFLER ONLY+ ADD | $91.00 | 1 |
| 14 | A00118-10-00 | RUBBER DAMPER+ ADD | $2.00 | 1 |
